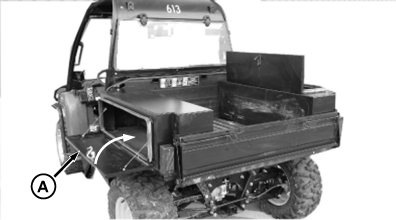

Cargobox Toolboxes

Avoid damage! Toolbox lids open to the side may be damaged by contact with objects when operating the machine. Before operating the machine, check to be sure that the toolbox lids are closed and the latches are secure.

MXT015592-UN-15SEP15

Operating the Tailgate

Avoid injury! Riders can fall off and be injured or killed. Do not allow riders in the cargo box or on the tailgate.

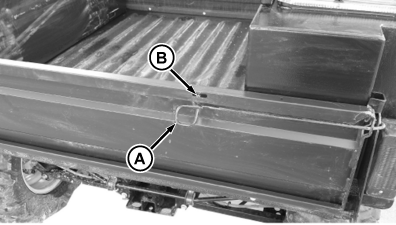

MXT015581-UN-14SEP15

1. To unhook rods from slot (B) in tailgate, push in and down on loop (A) of tailgate latch rods.

2. Pull latch rods out and down.

3. Avoid injury! When raising or lowering tailgate, latch rods can swing outward abruptly towards operator. Stand in center of tailgate and slowly lower or raise tailgate to make sure that latch rods do not contact operator.

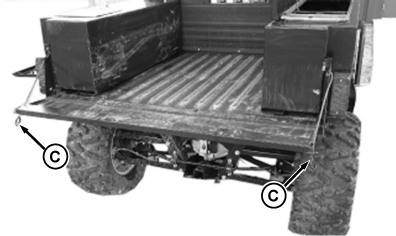

   MXT015582-UN-17SEP15

   Lower tailgate until it rests on ends of latch rods (C).

---




4. Avoid injury! Lower tailgate completely to unload cargo box only. Never drive with the tailgate hanging down. Tailgate can contact tires and cause damage.

   To engage rod in slot (B) in tailgate raise tailgate, slowly push tailgate upward. Push inward and upward on loop (A) of latch rod.

Removing the Tailgate

Avoid injury! Riders can fall off and be injured or killed. Do not allow riders in the cargo box or on the tailgate.

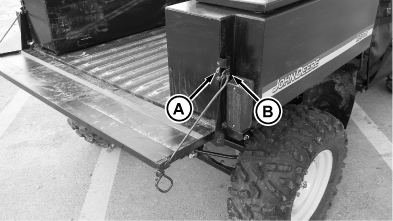

MXT015583-UN-14SEP15

1. Remove and retain rubber hose sleeves from latch rod ends (A).

2. To disengage from slots (B) in cargo box sides, raise tailgate slightly and rotate latch rods.

3. Remove latch rods from sides of tailgate.

4. Support tailgate by hand.

5.

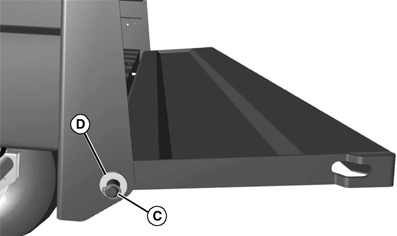

   MXAL47430-UN-12APR13

   Remove retaining ring (C) and bushing (D) from each tailgate rod end.

---




6. Slide tailgate sideways so tailgate rod end is clear of the cargo box bracket.

7. Pull the detached end of tailgate away from the cargo box enough to clear the cargo box bracket. Allow the tailgate to slide in opposite direction to complete removal.

8. To install, reverse the steps.
