Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section):

1.
   MXT023340-UN-02AUG18


   MXT018934-UN-23NOV16

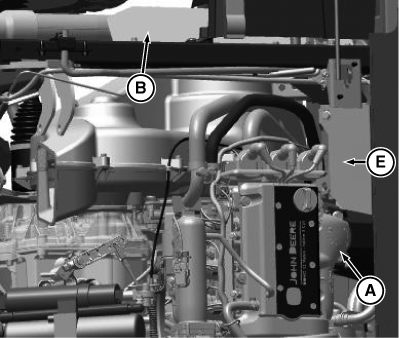

   Exhaust manifold (A) and shields (B), muffler pipes (C), muffler (D), and muffler shield (E).

---




2.
   MXT018948-UN-28AUG17

   Models with HVAC. Components hidden for better view.

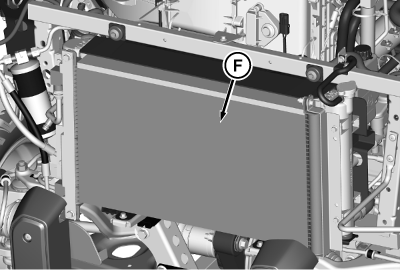

   Air-conditioning condenser fins (F).

---




3.
   MXT018935-UN-28NOV16

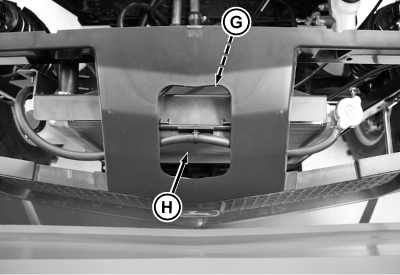

   Fan shroud (G) and radiator cooling fins (H).

---




4.
   MXT018936-UN-28NOV16

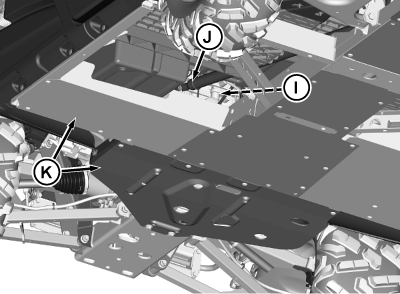

   Between engine (I), wire harnesses around bottom of battery, driveline (J), and skid plates (K).

---




5.
   MXT018937-UN-28NOV16

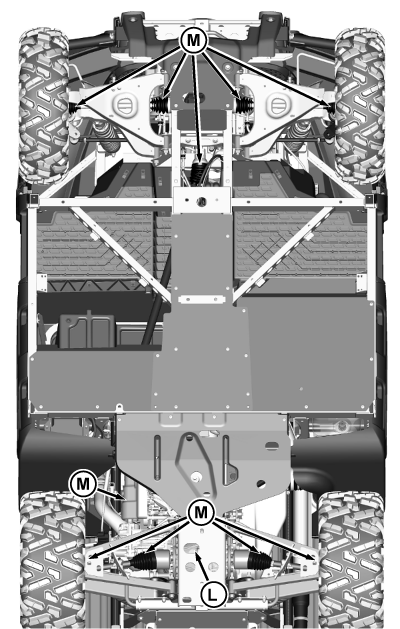

   On or near transmission (L) and driveline (M).

---




6.
   MXT018938-UN-28NOV16

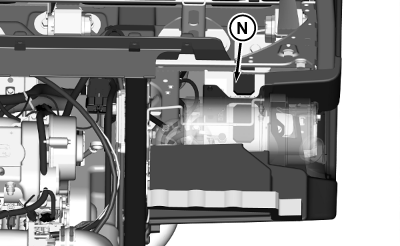

   Battery (N) and related wiring harnesses.

---
