Adjust Mower Level Using Deck Leveling Gauge - Method 1

Avoid injury! Rotating blades are dangerous. Before adjusting or servicing mower:

  • To prevent engine from starting accidentally disconnect spark plug wire(s) or battery negative (-) cable.
  • Always wear gloves when handling mower blades or working near blades.

  1. Park machine safely on a hard, level surface. (See Parking Safely.)

  2. Inflate tires to correct pressure. (See Tire Pressures in the SPECIFICATIONS section of your Operator’s Manual.)

  3. Raise mower deck to highest (transport) position by pulling back on upper hydraulic lever.

  4. MXT017709
    MXT017709-UN-18FEB16

    Tool box lid has been removed for clarity.

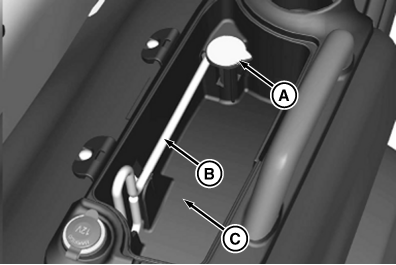

    Remove mower deck level gauge (A) and exact adjust wrench (B) stored in tractor tool box (C).


  5. Raise gauge wheels to highest setting.

  6. Set the mower height control knob to 2.5, then lower deck against stop by pushing forward on upper hydraulic lever.

  7. MXT020607
    MXT020607-UN-15JUN17

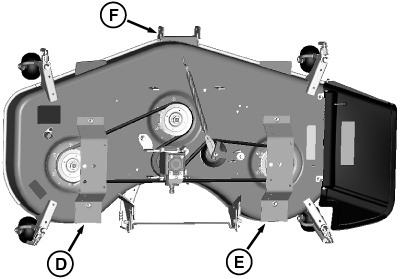

    Locations of adjustment points for reference:

    • Rear adjustment points, rear left (D) and rear right (E) are on lower deck skirt near tires.
    • The front adjustment point (F) is on the front left deck hanger bracket.



Adjust Mower Level (Side-to-Side):

  1. MXAL41816
    MXAL41816-UN-18FEB13

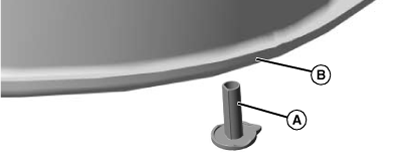

    Place gauge (A) under deck at left rear portion of rim (B).


  2. MXT020608
    MXT020608-UN-13JUN17

    Adjust deck height on left side of tractor until gauge just slips under deck rim.

    1. Insert exact adjust wrench (C) into adjustment nut (D) above draft arm.

    2. Turn wrench clockwise to raise lift arm.

    3. Turn wrench counterclockwise to lower lift arm.


  3. Place gauge on the floor under deck at right rear portion of rim.

  4. Raise or lower right side of deck using exact adjust wrench on right side of vehicle.

  5. If an adjustment of more than 3 mm (1/8 in) is required, adjust both points alternately. A large adjustment on one side can move other side in the opposite direction.

    Repeat adjustment as necessary (Confirm gauge (A) just slips under deck on both sides).


Adjust Mower Level (Front-to-Back):

  1. MXT020609
    MXT020609-UN-13JUN17

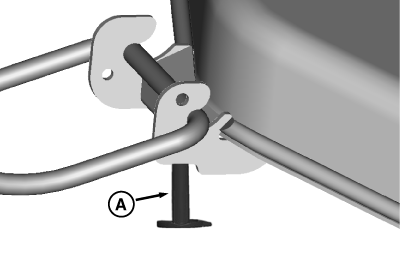

    Place gauge (A) at the third adjustment point under front left deck hanger bracket.


  2. MXT020610
    MXT020610-UN-13JUN17

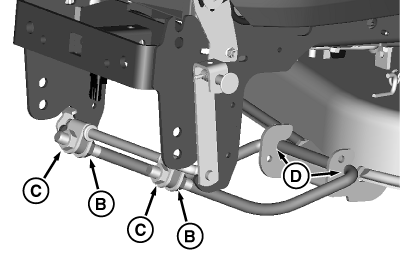

    Raise or lower front of deck as necessary until gauge just slips under front deck hanger bracket adjustment point:

    1. Loosen two rear nuts (B) on front deck hanger.

    2. Turn two front nuts (C) clockwise to raise front of mower deck; turn counterclockwise to lower front of mower deck.

    3. Once front of deck is at desired height, verify that there is no gap at location (D) on both right and left side.

    4. Tighten rear nuts after adjusting. Once again verify that no gap was created after tightening rear nuts.

    5. Raise deck and turn height control knob to the lowest setting. Lower deck to ground and remove front draft hanger bracket. Confirm that the deck is firmly sitting on the ground at front and back of deck.

    6. If deck is not resting on ground, install front draft hanger bracket and raise deck 2—3 inches off ground. Using the exact adjust wrench, lower right and left side one turn. Lower deck, remove front draft hanger bracket and reconfirm deck rests firmly on the ground.


    7. MXT017911
      MXT017911-UN-26APR16

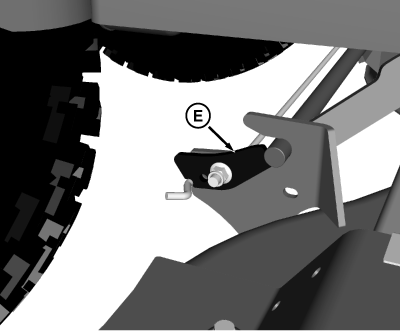

      Check mower deck draft arm latch (E) and make sure that it releases mower deck without too much force. If deck does not rest on ground pressure will not allow latch to release.

      One full turn with exact adjust wrench is approximately 3 mm (1/8 in) on mower deck.

    8. Install front draft hanger, fully raise mower, and adjust height control knob to desired height.


    9. With mower deck in its fully raised position, verify:

      • MXT017912
        MXT017912-UN-18FEB16

        MXT017913
        MXT017913-UN-18FEB16

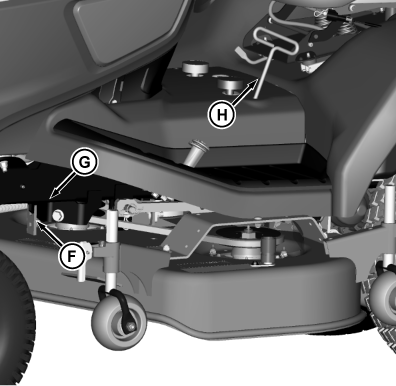

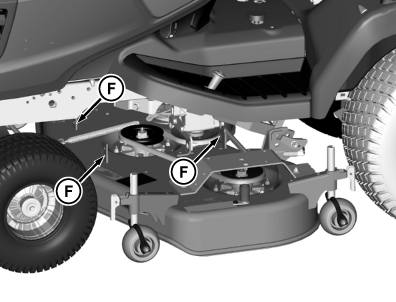

        The deck up-stops (F) and frame (G) have a gap.

    10. If no gap exists, lower mower deck slightly to remove tension in system. Use exact adjust wrench (H) to equally lower right and left side of the mower deck. Repeat until there is approximately 6.4 mm (0.25 in) gap.


  3. Return mower deck level gauge and exact adjust wrench to their storage positions.

  4. Adjust mower height control knob to desired cutting height.

  5. Lower mower deck.

  6. Adjust gauge wheels so they clear the ground by 3 mm (1/8 in) to 13 mm (1/2 in).

JK79365,00008BC-19-20170807
