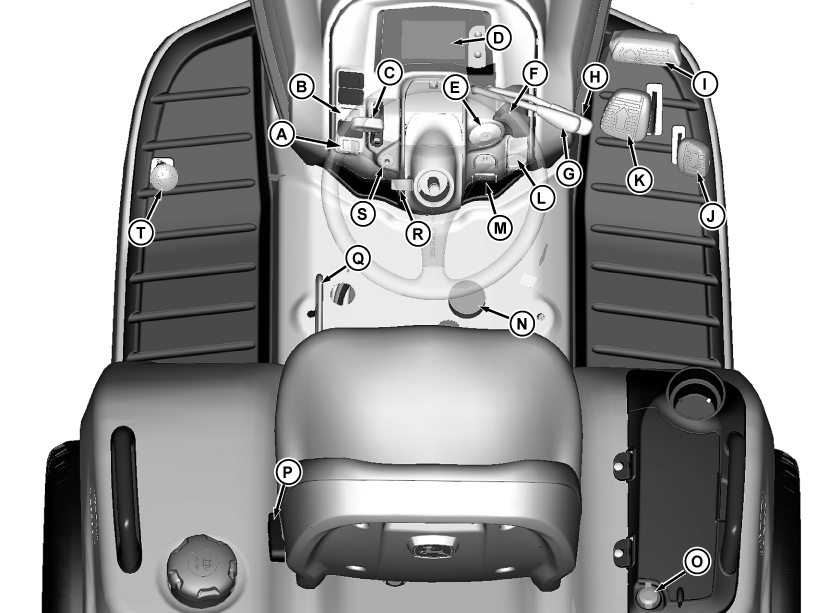

Operator Station Controls

MXT020614-UN-15JUN17

A - Light Switch

B - 12V Accessory Outlet Switch

C - Throttle Lever

D - Instrument Cluster

E - Key Switch

F - PTO/RIO Switch

G - Hydraulic Control Lever, Upper

H - Hydraulic Control Lever, Lower

I - Brake Pedal

J - Reverse Control Pedal

K - Forward Control Pedal

L - Park Brake Lock

M - Cruise Control Switch

N - Mower Height Control Knob

O - 12V Accessory Outlet

P - Seat back Recline Handle

Q - Seat Slide Lever

R - Tilt Steering Lever

S - RIO Switch

T - Traction Assist Pedal
