Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section).

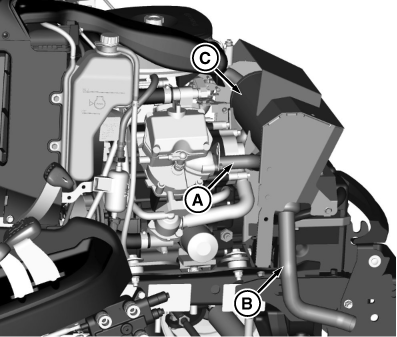

  1. MXT007774
    MXT007774-UN-17JUL13

    Shown with hood removed.

    Exhaust manifold (A), muffler pipe (B), muffler (C) and muffler shield.

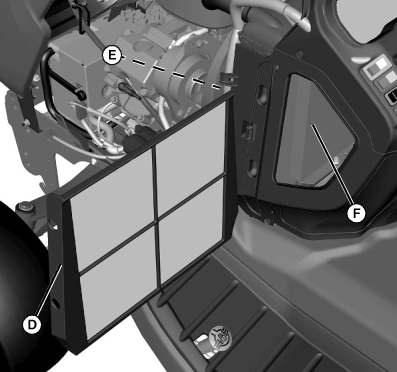

  2. MXAL42646
    MXAL42646-UN-22MAR13

    Engine intake screens (D), cooling fins (E) and oil cooler (F).

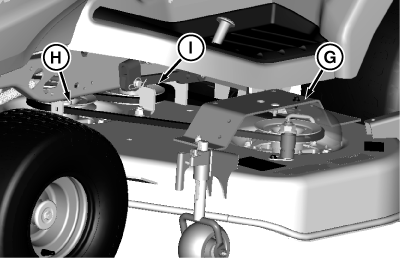

  3. MXT020971
    MXT020971-UN-07AUG17

    Top of mower deck, under shields (G), including spindle (H) and belt areas. On or near transmission and driveline (I) (if equipped).

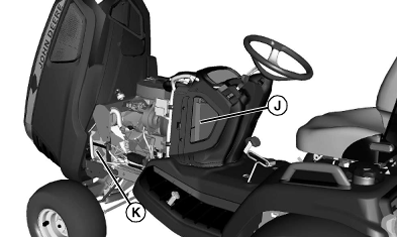

  4. MXAL42648
    MXAL42648-UN-22MAR13

    Under left side panel (J), and all wiring, including the battery (K) and related wiring harnesses
