Replacing Headlight Bulb

1. Halogen light bulb contains gas under pressure. The bulb may shatter if the glass is scratched or dropped. Wear eye protection and handle bulb with care when replacing.

   Raise hood.

2.

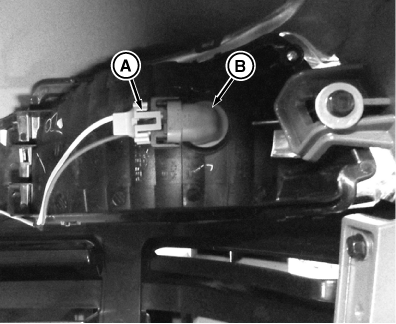

   MXT020605-UN-13JUN17

   Disconnect wire harness (A) from defective bulb assembly (B).

---




3. Turn bulb assembly 1/4 turn counterclockwise to remove.

4. Insert new bulb assembly into housing and turn 1/4 turn clockwise to install.

5. Connect wire harness.

6. Lower hood.
