Using 12-Volt Outlet

  1. Safe operation requires your full attention. Do not wear radio or music headphones while operating machine.

    Accessory must be rated at 15 amps or less.

    MXT020621
    MXT020621-UN-18JUL17

    MXAL41839
    MXAL41839-UN-18FEB13

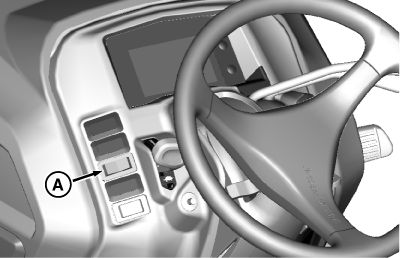

    Press right side of switch (A) to turn power off.

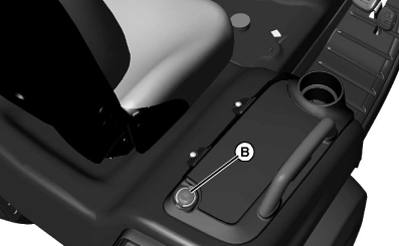

  2. Remove 12-volt outlet cover (B) and install accessory cord in outlet.

  3. Press left side of switch (A) to power the accessory outlet.

  4. Install cover (B) in outlet after use.

JK79365,00008E3-19-20170718
