Install Seat (Standard Models)

MXT020950
MXT020950-UN-25JUL17

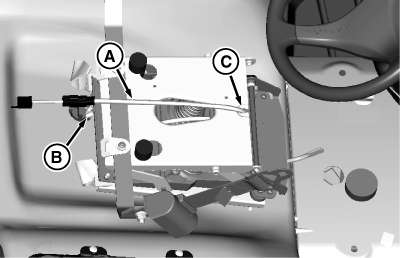

  1. Route wiring harness (A) through hole in fenderdeck (B) and slot in seat base (C).

  2. MXT020951
    MXT020951-UN-26JUL17

    Seat Foldable

    MXT020952
    MXT020952-UN-25JUL17

    Seat Non-Foldable

    Install seat (A) onto seat base and secure with pin (B) and locking pin (C).


  3. MXT020953
    MXT020953-UN-21JUL17

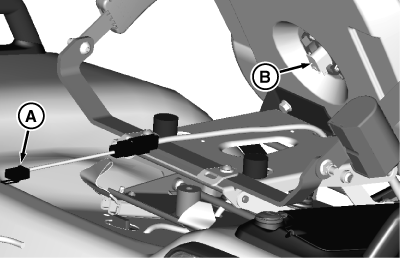

    Connect wiring harness connector (A) to seat switch connector (B).
