Adjusting Seat (Standard)

Adjusting Seat Position With The Slide Adjustment Lever (All Models)

1.

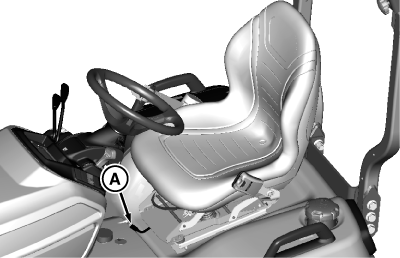

   MXT020954-UN-08AUG17

   Move seat adjustment lever (A) to the left.

---




2. Slide seat forward or backward to desired position.

3. Release lever.

4. Check to be sure seat is locked in position.

Changing Slide Rail Position (All Models)

The slide rails can be secured to the fenderdeck in two different sets of mounting holes. This provides an additional front / rear adustment to extend the range of the basic slide adjustment.

1.

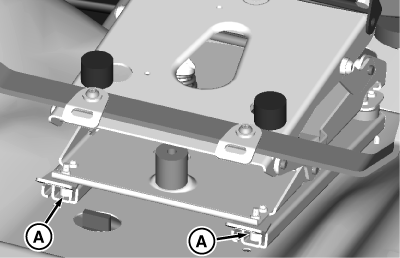

   MXT020955-UN-24JUL17

   Remove and retain two bolts (A) at rear of slide rails.

---




2.

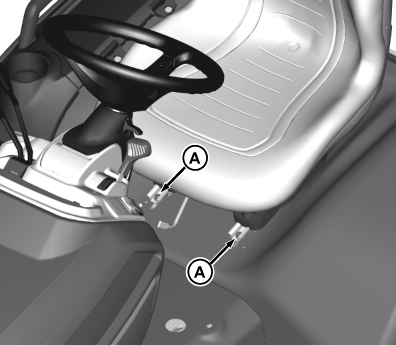

   MXT010939-UN-11JUN14

   Loosen two bolts (A) at front of slide rails.

---




3. Slide to front or back as desired.

4. Install two bolts, removed earlier, at rear of slide rails, then tighten all hardware.

Adjusting Seat Height and Suspension

1.

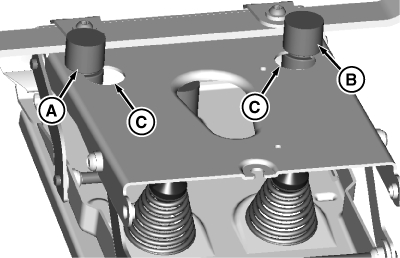

   MXT020965-UN-25JUL17

   Rubber stops (A, B) may be reversed to position seat at two different heights, low (A) and high (B).

---




2. To change height - Slide stops out of retaining slots into larger holes (C), flip stops, and slide back into retaining slots to secure.
