Adjusting Seat (Deluxe) (Optional)

Tiltable Back

MXT020958-UN-25JUL17

Adjusting Seat Position With The Slide Adjustment Lever (All Models)

1.

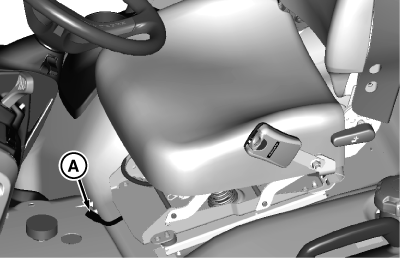

   MXT020959-UN-25JUL17

   Move seat adjustment lever (A) to the left.

---




2. Slide seat forward or backward to desired position.

3. Release lever.

4. Check to be sure seat is locked in position.

Changing Slide Rail Position (All Models)

The slide rails can be secured to the fenderdeck in two different sets of mounting holes. This provides an additional front – rear adjustments to extend the range of the basic slide adjustment.

1.

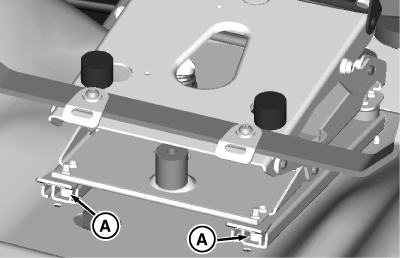

   MXT020962-UN-25JUL17

   Remove and retain two bolts (A) at rear of slide rails.

---




2.

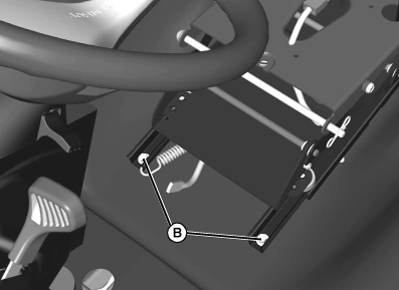

   MXAL41805-UN-18FEB13

   Loosen two bolts (B) at front of slide rails.

---




3. Slide to front or back as desired.

4. Install two bolts, removed earlier, at rear of slide rails, then tighten all hardware.

Adjusting Seat Height and Suspension

1. Verify that both rubber stops are set to same height.

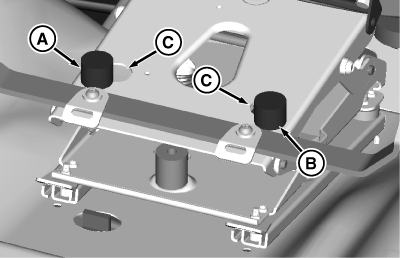

   MXT020961-UN-25JUL17

   Rubber stops (A, B) may be reversed to position seat at two different heights. To change height - Slide stops out of retaining slots into larger holes (C), flip stops, and slide back into retaining slots to secure.

---




2.

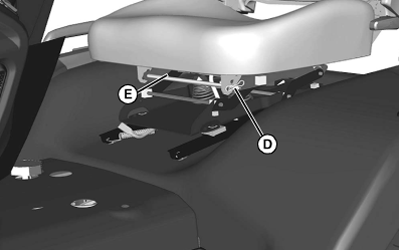

   MXAL41807-UN-18FEB13

   Seat bracket may be positioned at three different heights. To adjust - Remove locking clip (D) and seat rod (E). Position seat bracket to align a different mounting hole with seat base, and install seat rod and locking clip to secure.

---

Changing Seat Suspension Position on Slide Rails

The seat suspension has two sets of holes for mounting onto the slide rails. This provides an additional range of front-rear adjustment to extend the range of the basic slide adjustment and the two slide rail to fenderdeck mounting positions.

1. Disconnect seat wire harness and remove seat.

2.
   MXT020962-UN-25JUL17

   Remove two bolts (A) in rear of slide rail.

---




3.

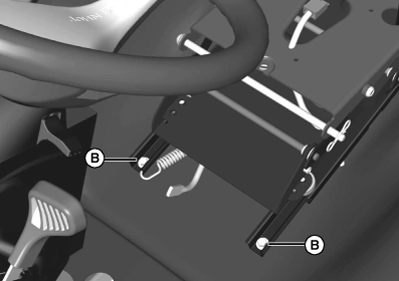

   MXAL41809-UN-18FEB13

   Remove two bolts (B) in front of slide rail.

---




4. Remove seat suspension and slide rails from machine.

5.

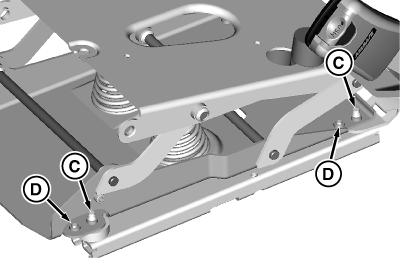

   MXT020963-UN-25JUL17

   Remove four bolts (C) securing seat suspension to slide rails. Use the slide adjustment as necessary to access the front and rear bolts from below.

---




6. Move slide rails and install bolts in forward mounting holes (D). Use the slide adjustment as necessary to access the front and rear mounting holes from below.

7. Install seat suspension and slide rails on machine with four bolts, removed earlier.
