Moving Machine by Hand

When the bypass valve is open, the machine will have unrestricted motion.

  • Do not open the bypass valve when the machine is stopped on an incline to prevent it from going downhill out of control.

Transmission damage may occur if the machine is towed or moved incorrectly:

  • Move machine by hand only.
  • Do not use another vehicle to move machine.
  • Do not tow machine.

When you need to move the machine without starting the engine, use the bypass valve lever:

  1. Stop engine.

  2. MXAL41846
    MXAL41846-UN-18FEB13

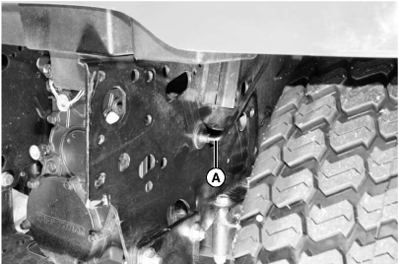

    Pull bypass valve control lever (A) fully up to open the bypass valve.


  3. Unlock park brake.

  4. Push machine to desired location.

  5. Push down bypass lever.

OUO1023,000006C-19-20130221
