Checking Fuel Filter Sediment Bowl

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Allow engine to cool.

3. Raise hood.

4. Red ring in bottom of sediment bowl will float on water. If ring is floating, sediment bowl should be cleaned.


   MXAL41879-UN-18FEB13

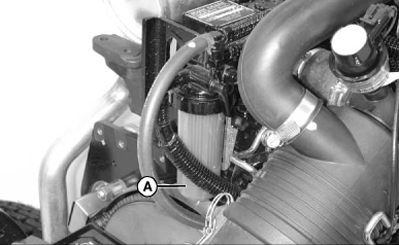

   Check for water and deposits in bottom of sediment bowl (A).

---




5. Clean sediment bowl and replace fuel filter if needed.

6. Lower hood.
