Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section).

1.

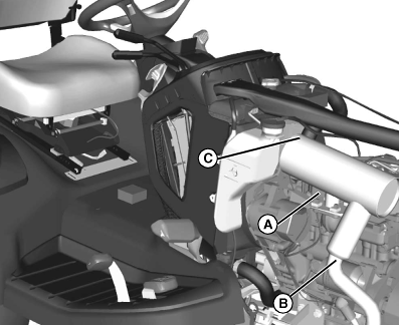

   MXAL41796-UN-18FEB13

   Exhaust manifold (A), muffler pipe (B), and muffler (C).

---




2.

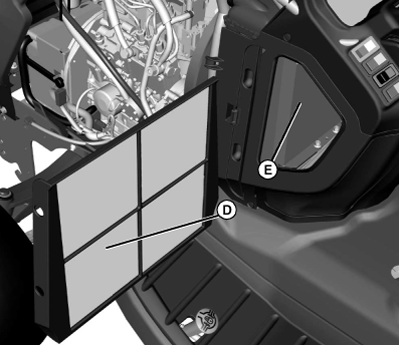

   MXAL41797-UN-18FEB13

   Engine intake screens (D), cooling fins and oil cooler (E).

---




3.

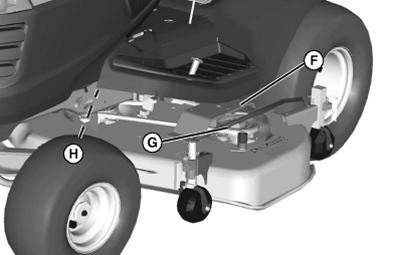

   MXAL41798-UN-18FEB13

   Top of mower deck, under shields (F), including spindle (G) and belt areas.
   • Top of mower deck, under shields (F), including spindle (G) and belt areas.
   • On or near transmission and driveline (H) (if equipped).



---




4.

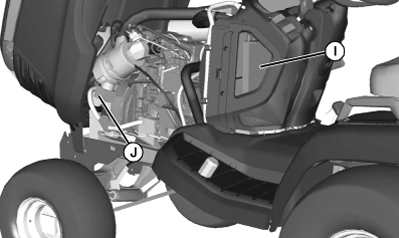

   MXAL41799-UN-18FEB13

   Under left side panel (I), and all wiring, including the battery (J) and related wiring harnesses.

---
