Using Hydraulic Control Levers

Hydraulic multi-function levers operate differently depending on attachment. See attachment operator’s manual before using hydraulic multi-function levers with an attachment.

MXAL41842-UN-18FEB13

MXT014357-UN-15JUN15

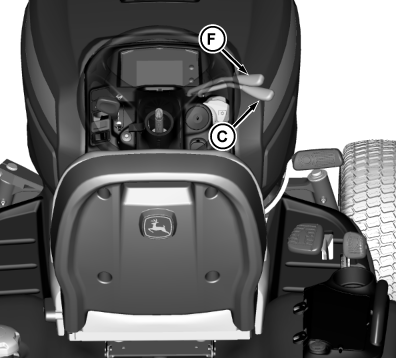

When hoses are connected to couplers (A) (black) and (B) (green), push lever (C) forward to divert fluid to coupler (A) and return through coupler (B). Pull lever backward to divert fluid to coupler (B) and return through coupler (A). Push lever to the full forward or float position to remove pressure in both lines and allow fluid to flow back and forth between lines. Lever should return to neutral position when released.

When hoses are connected to couplers (D) (yellow) and (E) (silver), push lever (F) forward to divert fluid to coupler (D) and return through coupler (E). Pull lever backward to divert fluid to coupler (E) and return through coupler (D). Lever should return to neutral position when released.

When not using lower hydraulic multi-function lever, periodically move lever back and forth to maintain lubrication. Be sure that lever is returned to middle (neutral) position and not locked in forward (float) position.
