Removing and Installing the Battery


Removing:

  1. Park machine safely. (See Parking Safely in the SAFETY Section.)

  2. Remove hood.

  3. MXT014358
    MXT014358-UN-15JUN15

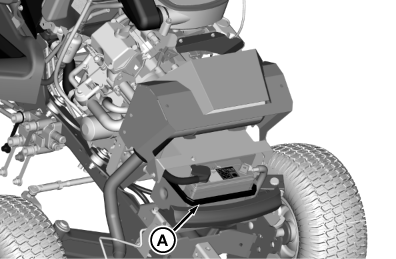

    Remove rubber strap (A).


  4. MXT014359
    MXT014359-UN-15JUN15

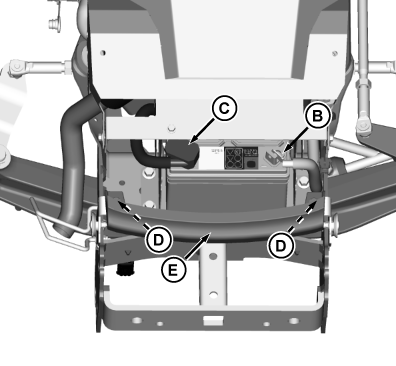

    Disconnect negative (–) battery cable (B).


  5. Push red cover (C) away from positive (+) battery cable and remove cable from battery.

  6. Remove two bolts (D) and front bumper (E).

  7. Remove battery.


Installing:

  1. Place battery on battery tray.

  2. Install plastic bumper with 2 bolts..

  3. Connect positive (+) cable to battery positive (+) terminal first, then negative (-) cable to battery negative (-) terminal.

  4. Apply spray lubricant to terminals to prevent corrosion.

  5. Slide red cover over positive battery cable.

  6. Replace rubber strap (A).

  7. Install hood.
