Using SCV Lockout (If Equipped)

MXT004563
MXT004563-UN-05JUL12

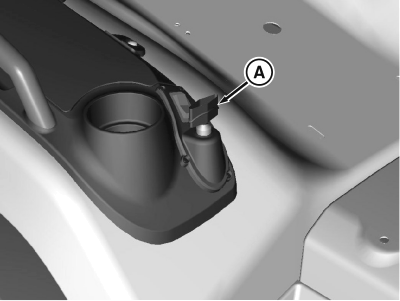

  1. Turn knob (A) counterclockwise to release control lock and pull up to engage SCV lockout. Turn knob (A) clockwise to engage control lock.

  2. Turn knob (A) to release control lock and push down to disengage SCV lockout. Turn knob (A) clockwise to engage control lock.

OUO2004,0000CE6-19-20150908
