Testing Park Brake

  1. Inflate tires to correct pressures.

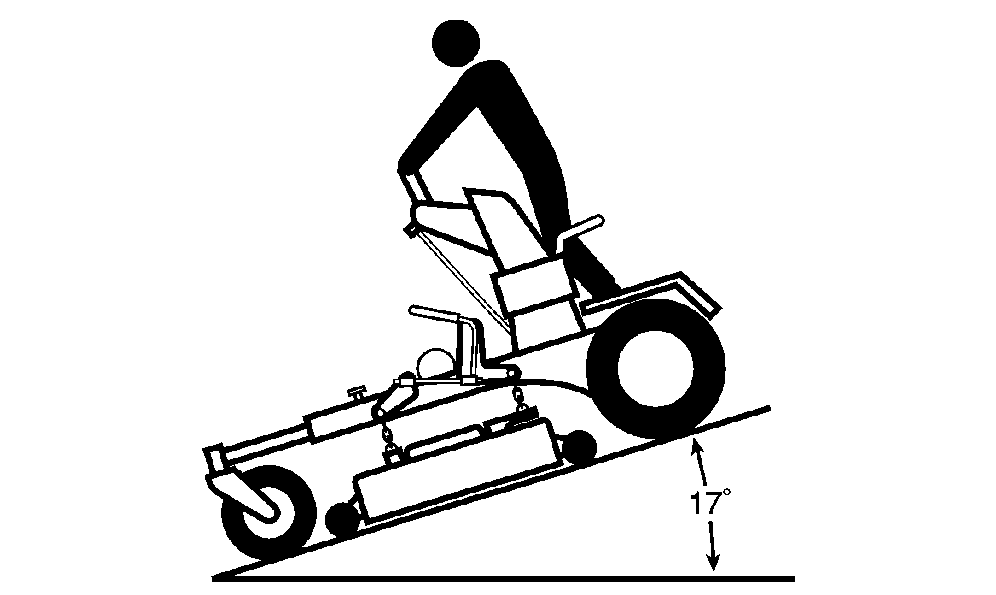

  2. TCAL43612
    TCAL43612-UN-26MAR13

    Stop machine on a 17° slope (30% grade). Stop engine and lock park brake.


Result: Park brake must hold the machine stationary. Machine should move no more than 61 cm (24 in.) in one hour. If machine moves more than that, brake needs to be adjusted. See your John Deere dealer or refer to Adjusting Park Brake in the Service Steering and Brake section.
