Using Fuel Shutoff Valve and Fuel Gauge

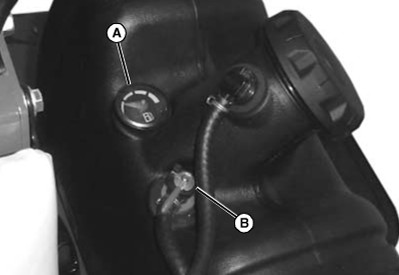

TCAL43615-UN-26MAR13

The fuel gauge (A) is located at the top of the tank, and will indicate the level of fuel in the tank.

Do not fill the tank completely; allow for expansion. Fill the tank to 25 mm (1 in.) below the filler neck.

The fuel shutoff valve is located at the top of the tank. Move fuel shutoff valve (B) to the on position for normal operation. Move the fuel shutoff valve to the off position when the machine is not in use, and during transport.
