Checking Carbon Canister and Fuel Lines

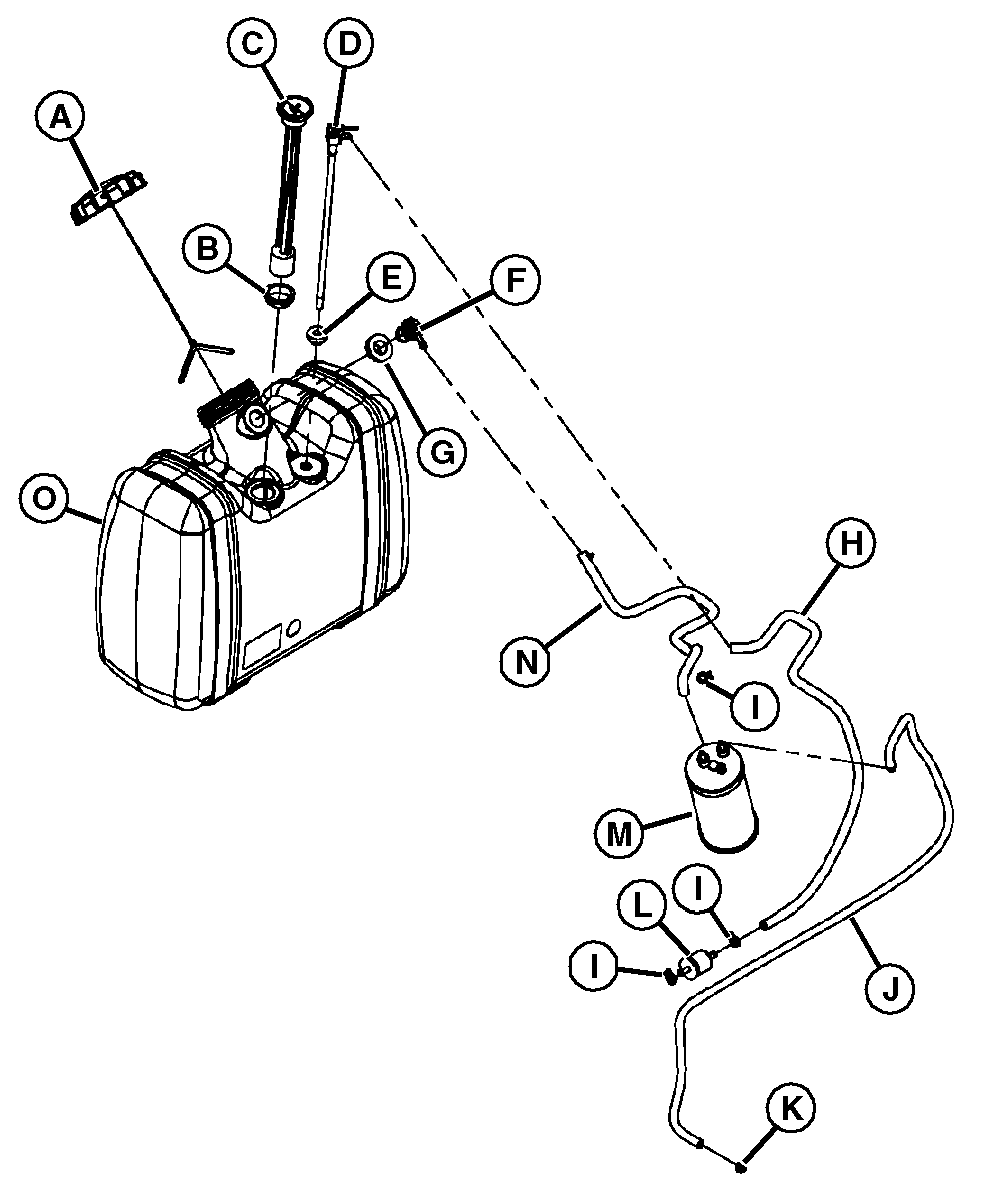

TCAL43627-UN-26MAR13

A - Fuel Tank Cap

B - Fuel Gauge Grommet

C - Fuel Level Gauge

D - Fuel Siphon

E - Bushing

F - Fuel Remote Vent

G - Grommet

H - Fuel Line

I - Hose Clamp (5 used)

J - Fuel Hose, 3/16-in. ID

K - Hose Clamp

L - Fuel Filter

M - Carbon Canister

N - Fuel Hose, 3/16-in. ID

O - Fuel Tank

• Do not alter or remove system components.

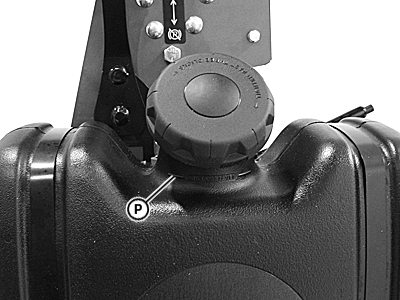

TCAL47944-UN-15AUG13

• Do not fill tank past “Max Fill Level” line (P).
• Overfilling could result in clogging the rollover vent and/or contaminating the purge canister.

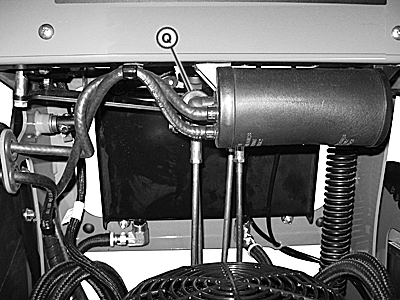

TCAL47945-UN-15AUG13

• The vapor canister is located under the dash.
• Inspect and clean the dust filter (Q) every 500 hours or annually.
