Lubrication

• Lock park brake, stop engine, and remove the key.
• Clean grease fittings using a rag.
• Connect grease gun to fitting and pump until grease begins to ooze from the bearings.
• Wipe off excess grease.
• Do not use spray lube of any kind on choke and/or throttle cables.

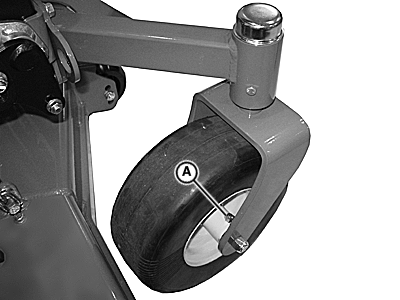

Lubricating Front Caster Spindles and Wheels

TCAL47951-UN-15AUG13

• Lubricate axle grease fitting (A) on each front wheel.
