Checking Spark Plugs

Touching hot surfaces can burn skin. The engine, components, and fluids will be hot if the engine has been running. Allow the engine to cool before servicing or working near the engine and components.

Do not clean spark plugs with abrasives.

1. Park machine safely. (See Parking Safely in the Safety section.)

2. Clean area around both spark plugs.

3.

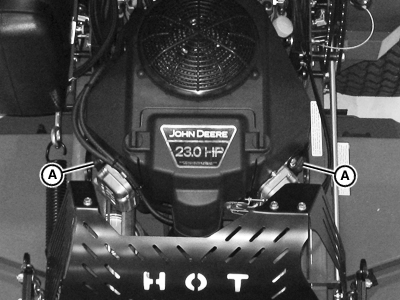

   TCAL47961-UN-16AUG13

   Disconnect the spark plug wire (A) from each plug.

---




4. Remove and inspect spark plugs:

   • Clean each plug and check for damage. Replace if necessary.
   • If plugs are in good condition, check gap.



5.

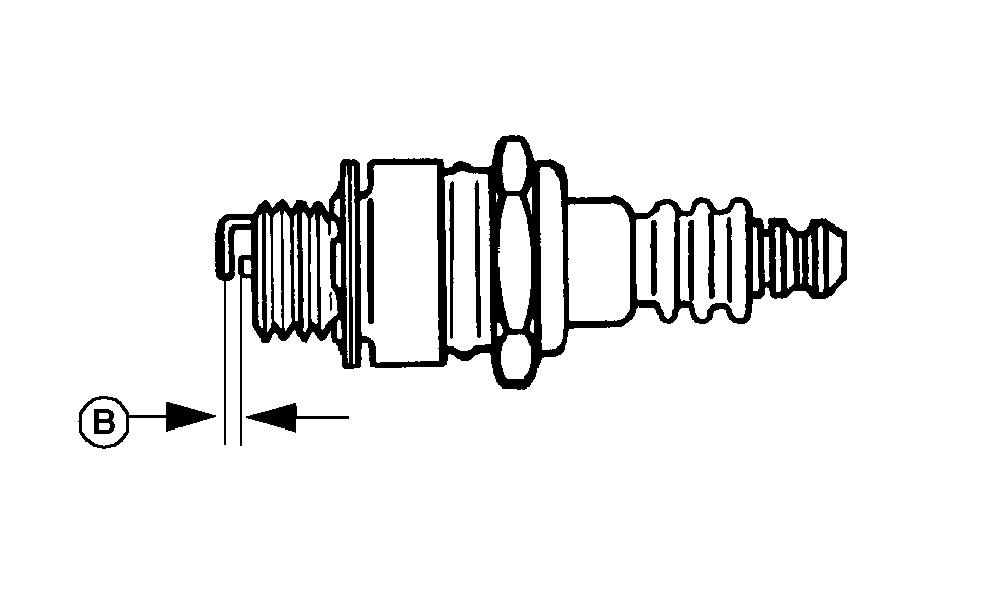

   TCAL43655-UN-26MAR13

   Check and adjust spark plug gap (B) to specification.

   Spark Plug	Gap	0.75 mm (0.030 in.)

---




6. Install spark plugs and tighten to specification.

   Spark Plug	Torque	22 N·m (16 lb.-ft.)

7. Install both spark plug wires.
