Replacing Fuel Filter

Fuel vapors are explosive and flammable:

• Do not smoke while handling fuel.
• Keep fuel away from flames or sparks.
• Shut off engine before servicing.
• Cool engine before servicing.
• Work in a well-ventilated area.
• Clean up spilled fuel immediately.

When installing a new fuel filter, the filter arrow must be pointed in the direction of the fuel flow.

1. Park machine safely. (See Parking Safely in the Safety section.)

2. Allow engine to cool.

3.

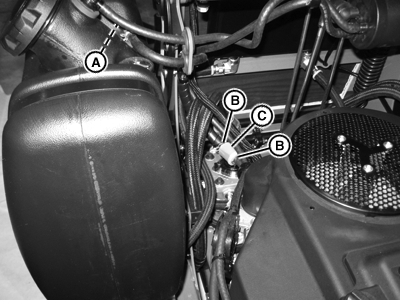

   TCAL47966-UN-16AUG13

   Turn fuel shutoff valve (A) to the off position.

---




4. Slide hose clamps (B) away from fuel filter (C).

5. Place drain pan under hoses to catch any fuel that may be left in the hoses.

6. Disconnect hoses from fuel filter (C).

7. Install new fuel filter (C).

   • Make sure fuel filter is installed with the arrow pointing in the direction of fuel flow.



8. Connect hoses to new fuel filter (C).

9. Install hose clamps (B).
