Tightening Rear Drive Wheel Hardware

1. Tighten rear wheel nuts in an alternate pattern.

2.
   TCAL43701-UN-26MAR13

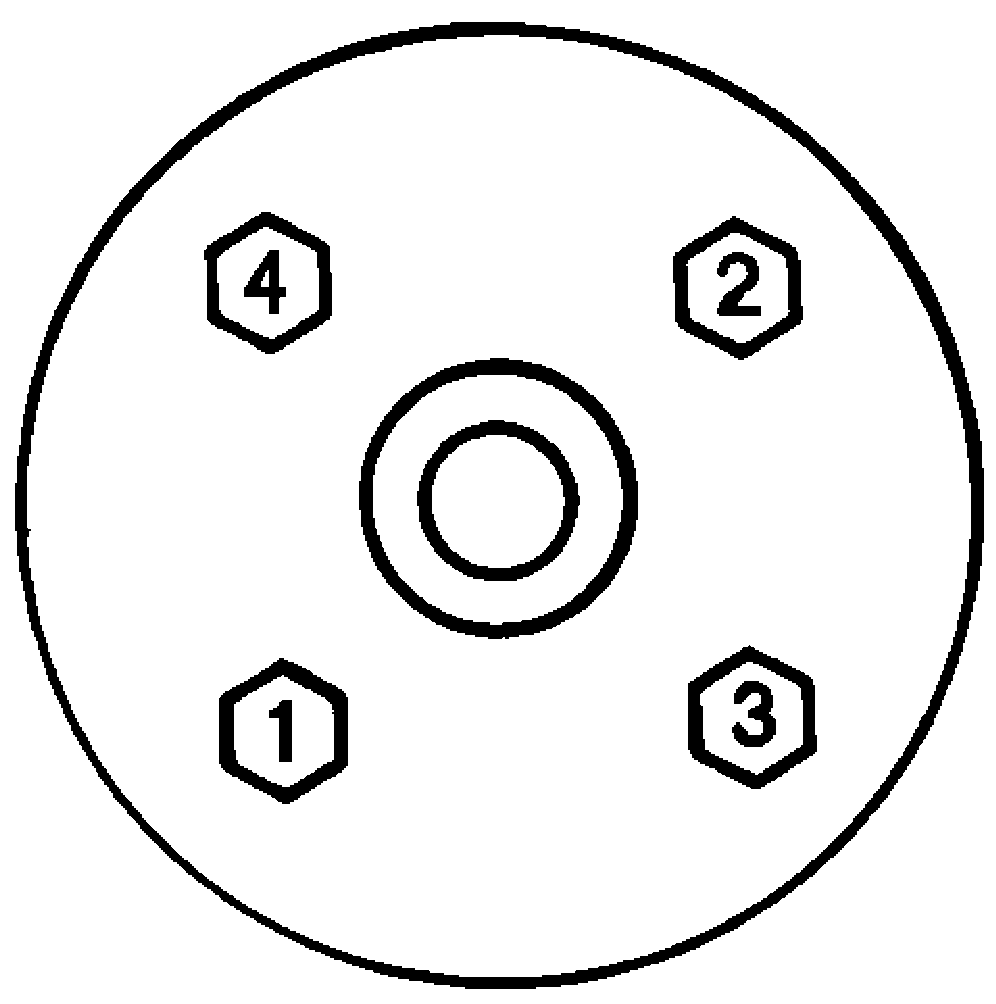

   Tighten wheel nuts in numbered sequence shown for safe wheel installation. Tighten alternately until recommended torque value is reached.

   Rear Wheel Nut	Torque	108-122 N·m (80-90 lb.-ft.)

---
