Cleanout Areas

TCT015252
TCT015252-UN-13OCT17

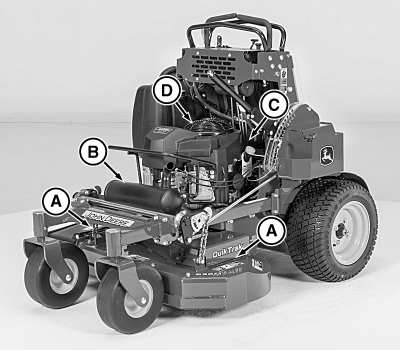

Inspect and clean the entire machine and pay special attention to these locations:

  • Top of mower deck and under shields (A).
  • Muffler and exhaust system (B).
  • Pump, screens and shields (C).
  • Engine and engine screens (D).

BS62576,000218F-19-20171013
