Removing and Installing Rear Drive Wheels

Removing

1. Park machine safely. (See to Parking Safely in the Safety section.)

2. The machine can fall or slip from an unsafe lifting device or supports, injuring anyone beneath it.

   • Remove key before raising machine.
   • Use a safe lifting device rated for the load to be lifted.
   • Lower machine onto jack stands or stable supports and block wheels before servicing.

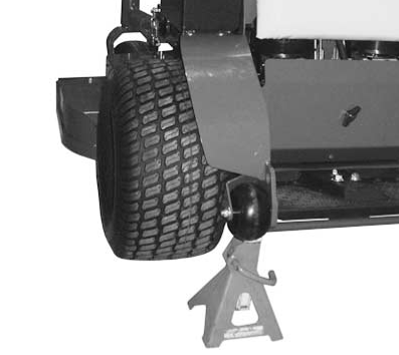

   TCAL43699-UN-26MAR13

   Raise rear of machine with safe lifting device.
   • Use wheel chocks to block the front wheels.
   • Support with jack stands.



---




3.

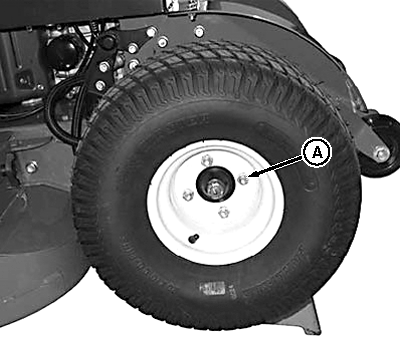

   TCT015583-UN-06OCT17

   A - Wheel Nut

   Remove wheel nuts (A).

---




4. Remove wheel.

Installing

1. Place wheel onto hub of wheel motor.

2. Hand start lug nuts onto studs hand tight. The taper side of the lug nuts should be contacting the hub.

3. Torque lug nuts (3/4") in an alternating pattern to 108-122 N·m (80-90 lb·ft).

   Rear Wheel Nut	Torque	108-122 N·m (80-90 lb·ft)

4. Lower machine.

5. Repeat process for opposite side.
