Sharpening Blades

Avoid injury! Blades are sharp. Always wear gloves when handling blades or working near blades.

Always wear safety eye protection when grinding.

• Sharpen blades with grinder, hand file, or electric blade sharpener.

GXAL42041-UN-04MAR13

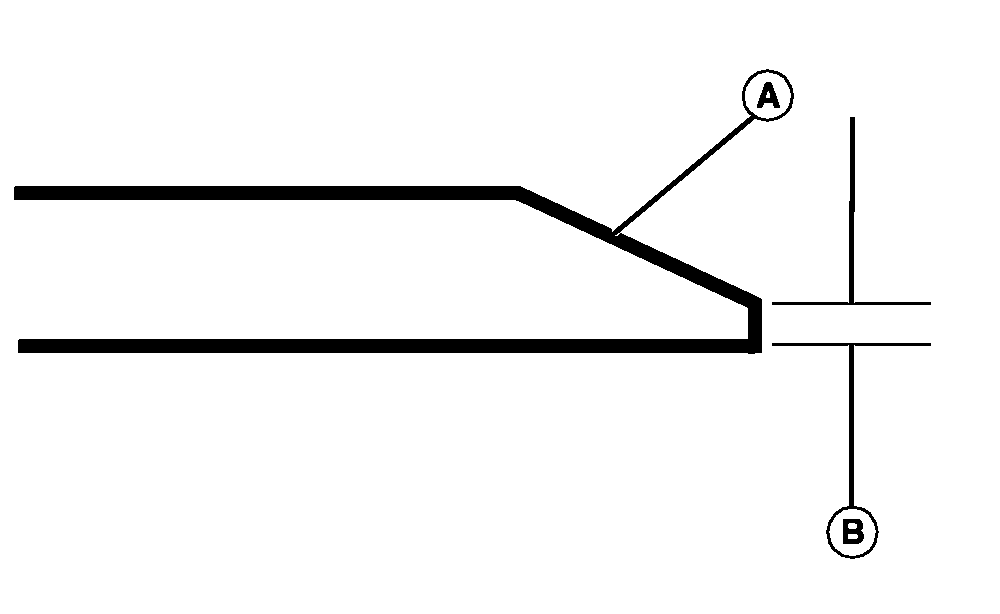

• Keep original bevel (A) when grinding.
• The blade cutting edge (B) should meet specifications.

  Mower Blade Cutting Edge	Distance	0.40 mm (1/64 in)

• Balance blades before installing.
