Raising and Lowering Thigh Pad

  1. Park machine safely. (See Parking Safely in the Safety section.)

  2. TCT014089
    TCT014089-UN-20JUL16

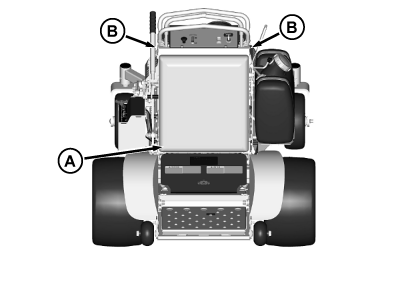

    Lift up on bottom portion of thigh pad (A), allowing it to swivel upward on hinges (B).

    Thigh pad is not intended to stay up on its own.


  3. Push down on thigh pad (A), allowing it to swivel downward on hinges (B).

OUMX068,00010D9-19-20160720
