Raising and Lowering Deck

The deck lift handle allows the deck to be placed into the highest position for transporting.

1. Park machine safely. (See Parking Safely in the Safety section.)

2.

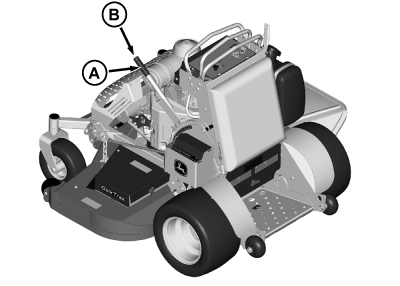

   TCT014090-UN-20JUL16

   To raise and lock the mower deck, pull the deck lift handle (A) while pressing push-button (B) until the lift handle is past the highest position. Release push-button and an audible click will be heard. The deck is now locked in the highest position for transporting.

---




3. The mower deck only lowers to the set height. (See Adjusting Mower Deck Height-of-Cut)


   TCT014091-UN-20JUL16

   To unlock and lower the mower deck, pull the deck lift handle (A) back from the locked position and press push-button (B). Slowly lower the deck lift handle to the deck height setting (C).

---
