Using the Throttle

TCT014093
TCT014093-UN-20JUL16

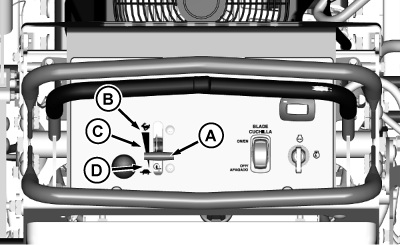

  • Move throttle lever (A) forward to the fast position (B) when mowing.
  • Move throttle lever (A) to the 1/2 fast position (C) when starting and warming the engine.
  • Pull throttle lever (A) backward to the slow position (D) to idle engine. Do not run engine at slow idle any longer than necessary.

OUMX068,00010DC-19-20160720
