Using Quick Clamps

Most optional attachments and kits use quick clamps to attach to the machine.

Using Clamps

1. Check and adjust the tightness of the clamps after the first 30 days of use.

2. If clamps are loose:

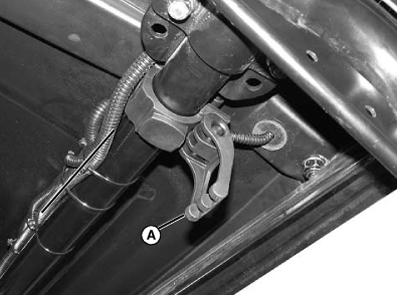

   MXAL44361-UN-28MAR13

   1. Open clamp arm lever (A).

   2. Increase tension by turning lever (A) one full turn clockwise. Repeat as needed.

   3. Lock clamps.

---




3. If clamps are tight:

   1. Open clamp arm lever (A).

   2. Decrease tension by turning lever (A) one full turn counter-clockwise. Repeat as needed.

   3. Lock all clamps.
