Transporting Machine


Towing the Machine

Avoid damage! Never tow the vehicle above 40 km/h (25 mph). Towing a vehicle at speeds above 40 km/h (25 mph) results in transmission damage.

To avoid damage, haul the vehicle in an enclosed trailer. If an open trailer must be used, haul on a heavy-duty trailer or on a full-size truck. Be cautious and travel at reduced speeds.

Optional accessories, such as a windshield, must be removed to avoid sudden unintentional separation from the vehicle.

Never use a car type dolly with the front wheels on the dolly.

  1. Check to be sure that the ignition key switch is in the STOP position.

  2. Unlock the park brake and move the transmission shift lever to the Neutral position for towing.

  3. Move the four-wheel drive control to Disengaged/Off position.


Machine Tie Down Locations

MXAL47318
MXAL47318-UN-16APR13

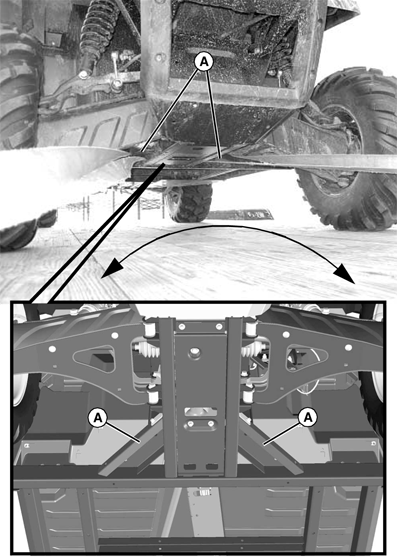

Fasten front of machine around frame braces (A) to trailer with a heavy-duty strap, chain, or cable. Strap must be directed down and outward from machine.

MXAL47319
MXAL47319-UN-16APR13

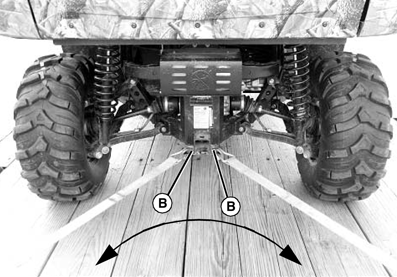

Fasten rear of machine through tie-down points (B) to trailer with a heavy-duty strap, chain, or cable. Strap must be directed down and outward from machine.


Hauling the Machine

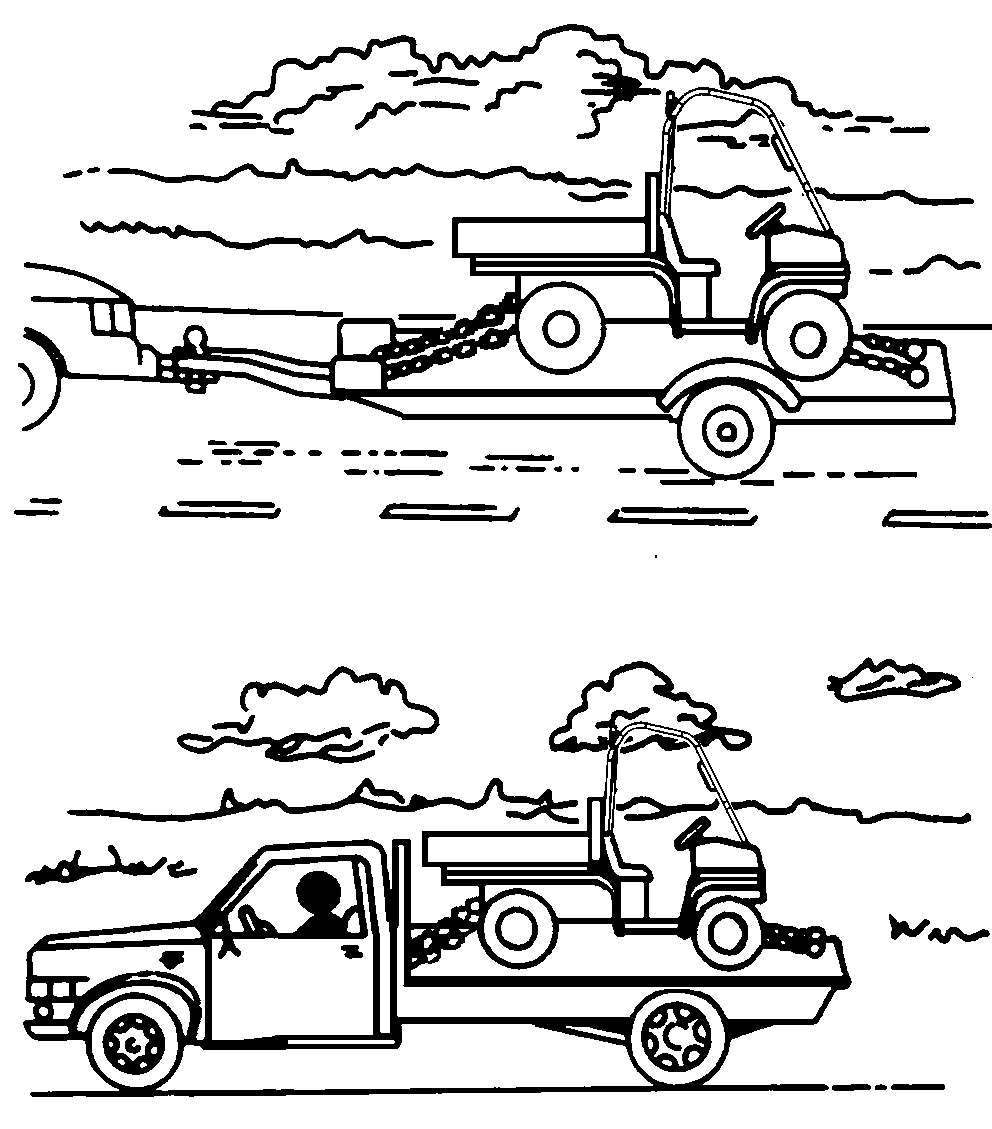

Space limitations can vary from one truck manufacturer to another. Short bed trucks do not have the necessary length requirement to accommodate the machine.

MXAL43179
MXAL43179-UN-19MAR13

  1. Back machine onto the trailer or truck.

  2. Leave transmission shift lever in Forward or Reverse gear.

  3. Park the machine safely. (See Parking Safely in Safety section.)

  4. Fasten machine to trailer or truck with straps, chains, or cables.

  5. Equip the trailer or truck with all the necessary lights and signs required by local, state, provincial, or federal laws.

  6. Remove or secure optional attachments, if equipped.

OUMX068,0000918-19-20180402
