Removing and Installing Cargo Box


Removing Cargo Box

Avoid injury! Do not attempt removal of the cargo box without using the latch support.

Empty all material from the cargo box before removing.

  1. Empty the cargo box.

  2. Park the machine safely. (See Parking Safely in SAFETY.)

  3. On machines with a power cargo box lift, disconnect power lift:

    MXT012763
    MXT012763-UN-13NOV14

    1. Fully raise cargo box, and lower latch support (A) downward.

    2. Lower cargo box with latch support onto frame (B).

    3. Remove top spring locking pin and cylinder pin (C), and lower top of lift cylinder (D) downward.

    4. Install cylinder pin and spring locking pin back into the lift cylinder for storage.

    5. Raise latch support and fully lower cargo box.


  4. Avoid injury! Machine component or attachment is heavy. Use a safe lifting device or get an assistant to help lift, install or remove component or attachment.

    MXT012764
    MXT012764-UN-13NOV14

    Remove nuts (E) and bolts (F). Remove cargo box from machine.


  5. Install bolts and nuts back into machine brackets for storage.


Installing Cargo Box

  1. Remove bolts and nuts stored in brackets at the rear of the machine.

  2. Avoid injury! Machine component or attachment is heavy. Use a safe lifting device or get an assistant to help lift, install or remove component or attachment.

    Carefully position cargo box on top of machine frame with a safe lifting device.

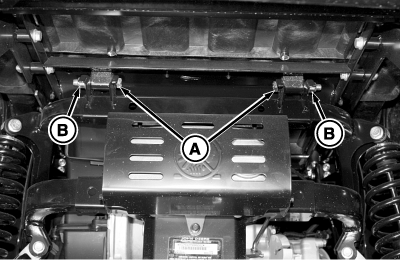

  3. MXT012765
    MXT012765-UN-13NOV14

    Align cargo box tabs and brackets at the rear of the machine, and secure rear of cargo box to the frame with bolts (A) and nuts (B).


  4. Avoid injury! Make sure cargo box is safely supported in the raised position before connecting the lift cylinder to the bottom of the cargo box.

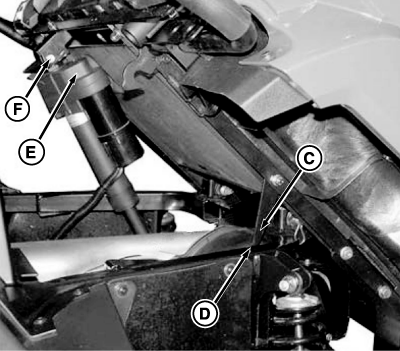

    MXT012766
    MXT012766-UN-13NOV14

    On machines with a power cargo box lift, connect power lift:

    1. Fully raise cargo box and lower latch support (C) downward.

    2. Lower cargo box with latch support onto frame (D).

    3. Remove spring locking pin and cylinder pin stored in the lift cylinder.

    4. Install top of lift cylinder (E) to bracket on cargo box and secure with cylinder pin (F) and spring locking pin.

    5. Raise latch support and fully lower cargo box.

OUMX068,0000A8D-19-20141113
