Checking Engine Oil Level

Avoid damage! Failure to check the oil level regularly could lead to serious engine problems if oil level is out of the operating range:

• Check oil level before operating.
• Check oil level when the engine is cold and not running.
• Keep oil level between the dipstick marks.
• Shut off engine before adding oil.

1. Park the machine safely. (See Parking Safely in SAFETY.)

2. To gain access to oil fill cap, remove access cover.

3.

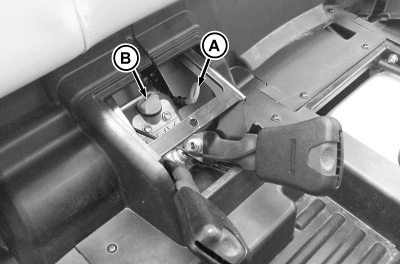

   MXT016171-UN-26OCT15

   Remove dipstick (A) and wipe it clean.

---




4. Install dipstick.

5. Remove dipstick.

6. Check oil level:

   • Oil level must be between hatch marks on dipstick.
   • If oil level is low, remove cap (B) and add oil to bring oil level no higher than upper mark on dipstick.
   • If oil level is above upper mark, drain to proper level. Determine cause of this condition and correct.



7. Install dipstick.

8. Install the access cover.
