Checking and Replacing Fuses

Avoid Damage! If incorrect replacement fuses are used, the electrical system can be damaged. Replace the bad fuse with a fuse of the same amperage rating.

1. Park the machine safely. (See Parking Safely in SAFETY.)

2.

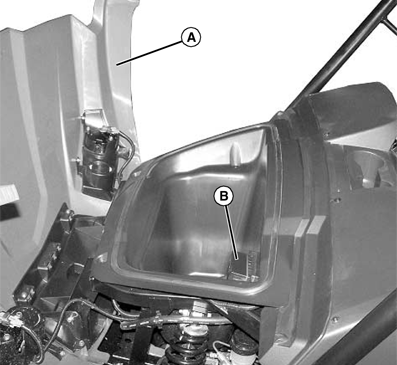

   MXAL47381-UN-16APR13

   Open hood (A) to access the storage tray.

---




3. Remove fuse box cover (B).

4.

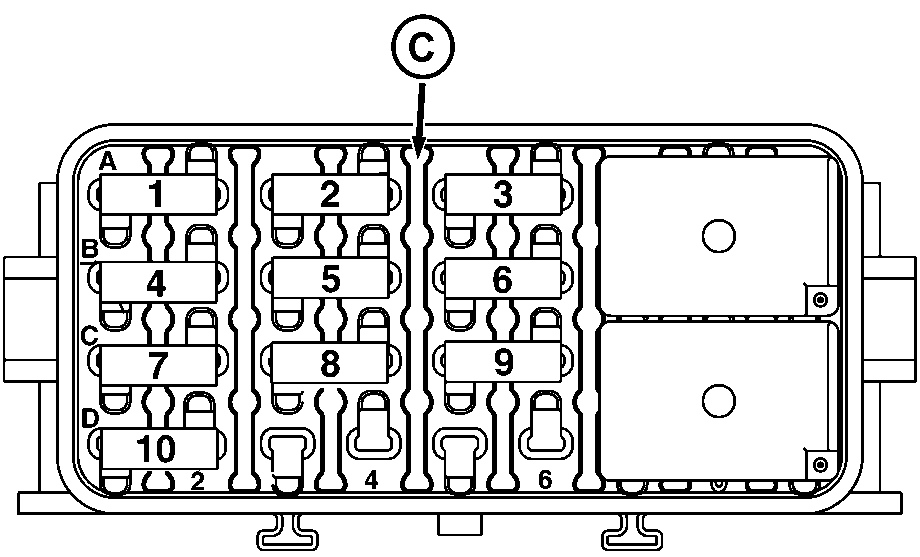

   MXT020158-UN-18MAY17

   Pull fuse from the load center (C) under the storage tray.

---




5. Fuse identification:

   Position	Circuit	Fuse Size
   1	Instrument Cluster Controller	20 A
   2	Starter Motor Solenoid	20 A
   3	Key Switch (Keyed Power)	15 A
   4	Key Switch Relay	15 A
   5	Front Accessory Power	30 A
   6	Rear Accessory Power	30 A
   7	Power Port	10 A
   8	Brake Light	10 A
   9	Switch Bank Power	30 A
   10	Diagnostic Port	5 A

6.

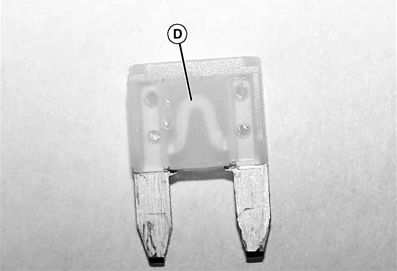

   MXAL47383-UN-16APR13

   Check visually for broken filament at location (D) in fuse.

---




7. Push new fuse of the correct amperage rating into proper position in the fuse block.

8. Install fuse box cover and close hood.
