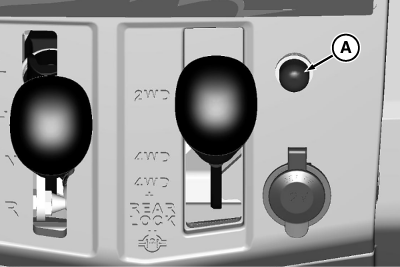

Integrity Indicator Light

MXT022521-UN-16MAY18

The integrity indicator light is meant to check for turn signal operation. When the hazard switch is activated the indicator flashes, whether a trailer is attached or not. With a trailer attached, the indicator also flashes when either turn signal is activated, indicating proper operation.

If the integrity indicator light does not flash during any of the scenarios described, check the machine and trailer lights. Once it is determined which light is not functioning, repair as necessary.

The following table specifies the proper function of the integrity indicator light for several different signal light scenarios.

	Vehicle ONLY, All Signal Lights Functioning	Vehicle ONLY, One Signal Light Not Functioning	Vehicle AND Trailer, All Signal Lights Functioning	Vehicle AND Trailer, One Left Signal Light Not Functioning	Vehicle AND Trailer, One Right Signal Light Not Functioning
Left Turn Signal On	Indicator Off	Indicator Off	Indicator Flashes	Indicator Off	Indicator Flashes
Right Turn Signal On	Indicator Off	Indicator Off	Indicator Flashes	Indicator Flashes	Indicator Off
Hazards On	Indicator Flashes	Indicator Flashes	Indicator Flashes	Indicator Flashes	Indicator Flashes
