Using the Cargo Box

Avoid injury! Do not allow riders in the cargo box or on the tailgate. Extra riders can fall off and be seriously injured or killed.

Raising and Lowering with Manual Lift

Avoid injury!

Park machine on a level surface and lock park brake before manually raising and securing cargo box in raised position.

A cargo box containing material can be heavy. Empty some or all material until cargo box can safely be raised manually.

1. Park the machine safely. (See Parking Safely in Safety section.)

2. Empty cargo box by hand.

3.

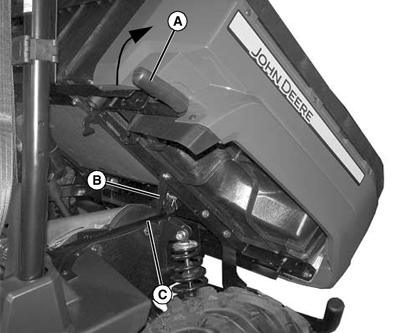

   MXAL47307-UN-16APR13

   Rotate handle (A) upward and raise cargo box. While holding cargo box in position, lower latch support (B) downward and lower latch support onto frame (C).

---




4. To lower the cargo box, raise latch support (B) and slowly push cargo box downward until it latches in fully lowered position.

Raising and Lowering with Power Lift

Avoid damage! A clicking or grinding sound when cargo box is fully raised or lowered or when box is heavily loaded indicates that the power lift cannot apply any more force. To prevent unnecessary wear or damage, keep sound to a minimum. Do not operate the power lift actuator beyond full stroke or exceed the cargo box weight capacity.

1. Park the machine safely. (See Parking Safely in Safety section.)

2. Empty cargo box by hand.

3. Turn ignition key switch to RUN position.

4. Raise cargo box by pressing and holding top of the power lift switch. Release switch when box is at desired dump height or when reaching maximum height.

5. Lower cargo box by pressing and holding bottom of the power lift switch.

6. Turn ignition key switch to STOP position.

Locking Box in Raised Position

Avoid injury! If not secured properly, cargo box can fall. Remove key from ignition and lower latch support onto frame before doing any service under the raised cargo box.

1. Raise the cargo box.

2.

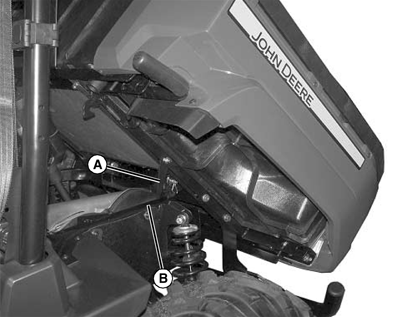

   MXAL47309-UN-16APR13

   Lower latch support (A) downward and lower latch support onto frame (B).

---




3. Check to be sure that box is locked in raised position.

4. To lower the cargo box, raise latch support (A) up and slowly push cargo box downward until it latches in fully lowered position.

Operating the Tailgate

Avoid injury! Never operate the tailgate with one lanyard attached (always use both).

Check condition of lanyards for wear or damage. Replace if cable is kinked or frayed.

Avoid damage! Do not attempt to tilt or dump cargo box when lanyards are detached, or tailgate damage results.

To avoid jamming material in the gap between the cargo box bed and tailgate, keep lanyards attached when loading and unloading loose materials.

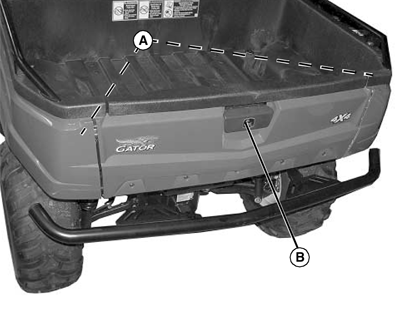

MXAL47310-UN-16APR13

1. Check to be sure lanyards (A) are in place for supporting lowered tailgate.

2. Disconnect lanyards only if you want to remove the tailgate.

3. To unlock and lower tailgate, pull back on handle (B).

4. Before raising tailgate, check for stones and debris caught in the gap between the tailgate and cargo box floor. To remove debris:

   • To secure the cargo box in raised position, use latch support.
   • Rotate the tailgate slightly to free debris, and brush out the gap.
   • Lower the cargo box.



5. To raise the tailgate, slowly push tailgate upward and lock into closed position.

6. Check to be sure that tailgate is securely locked.

Using Cargo Box Tie Downs

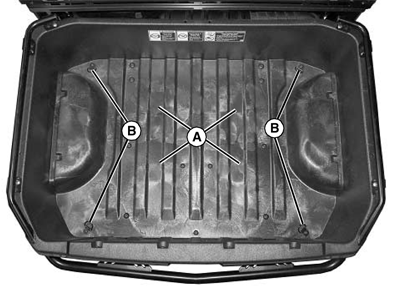

MXAL47311-UN-16APR13

1. Arrange load so the weight is centered over the main cargo area (A).

2. Secure loads to the tie-downs (B) in a safe and secure manner.

Removing the Tailgate

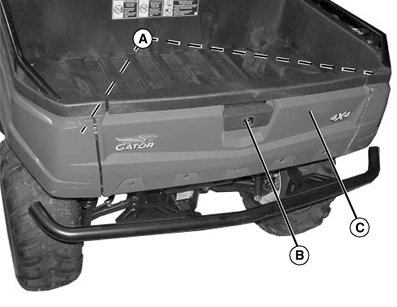

MXAL47312-UN-16APR13

1. Check to be sure lanyards (A) are in place for supporting lowered tailgate.

2. Pull back on handle (B) to unlock and lower tailgate (C).

3.

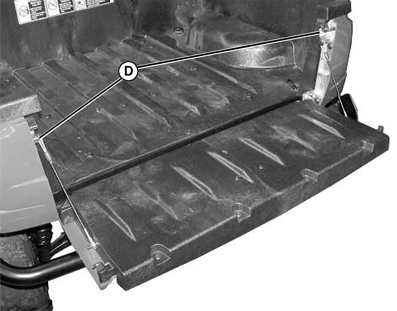

   MXAL47313-UN-16APR13

   Remove top loop (D) on top of lanyards from studs on the cargo box side, and lower tailgate downward.

---




4.

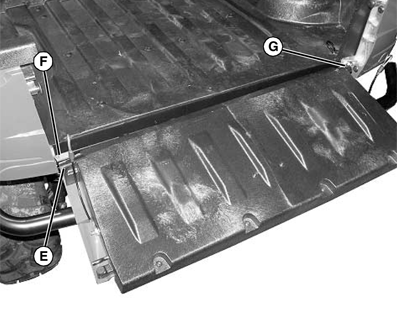

   MXAL47314-UN-16APR13

   Lower tailgate so that slotted opening (E) on tailgate matches pin (F) on the side panel. Remove left side of tailgate first and then remove right side (G) and entire tailgate assembly from the side panel.

---




5. Install in reverse order of removal.
