Changing Transmission Oil

1. Park the machine safely. (See Parking Safely in Safety section.)

2. Raise and secure cargo box with latch support.

3. Avoid damage! Dirt and debris in oil can cause damage to the transmission. Clean area around opening before removing dipstick.

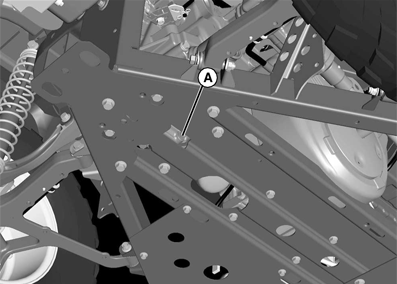

   MXAL47357-UN-16APR13

   Position drain pan under the drain plug (A).

---




4. Remove plug and drain oil.

5. Check washer on the drain plug. Replace if missing or in poor condition.

6. Install and tighten drain plug to specification.

   Transmission Drain Plug	Torque	30—35 N·m (22—26 lb·ft)

7.

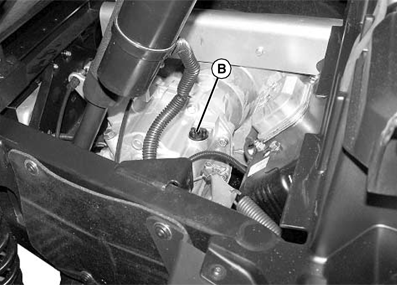

   MXAL47358-UN-16APR13

   Remove dipstick (B) on top of the transmission housing. Wipe dipstick clean.

---




8. Add recommended fluid.

9. Wait for two minutes, then check oil level. Add oil if necessary.

10. Install dipstick and tighten.

11. Lower the cargo box.
