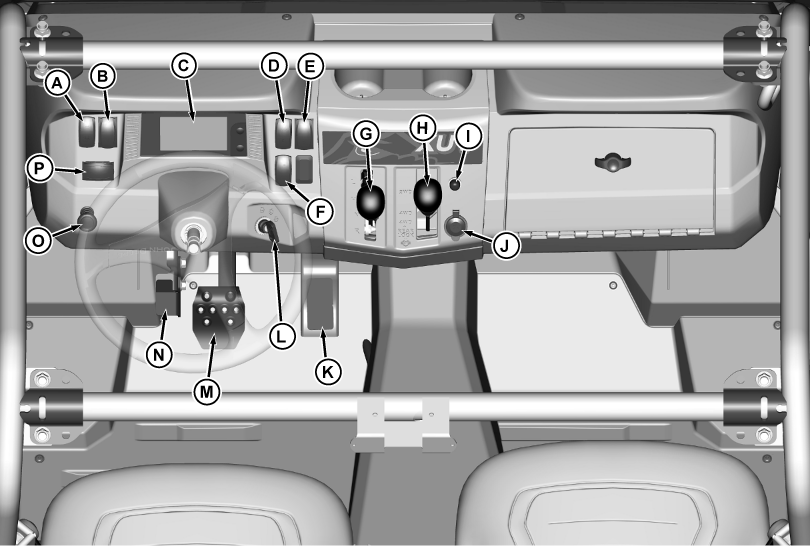

Operator Station Controls

MXT020152-UN-17MAY17

Some controls may not be installed on your machine.

A - Cargo Box Power Lift Switch
B - Hazard Lights Switch
C - Instrument Panel
D - Headlight Switch
E - Light Switch (High Beam)
F - Horn Switch
G - Transmission Shift Lever
H - 2WD/4WD Lever
I - Integrity Indicator Light (Green)
J - 12V DC Accessory Outlet
K - Accelerator Pedal
L - Ignition Key Switch
M - Brake Pedal
N - Park Brake Pedal
O - Choke
P - Turn Signal Switch
