Using Nets

Avoid injury! Do not operate vehicle with doors or nets removed. Always park vehicle safely before opening door or net to exit.

Do not operate vehicle with doors or nets in the open position. All doors or nets must be closed while the vehicle is in use.

Entering vehicle:

1. Move net rearward out of entry and exit area, and enter vehicle.

2.

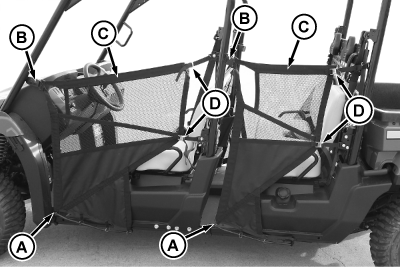

   MXT016164-UN-22OCT15

   Picture Note: XUV560 S4 model shown.

   Move bottom of net fully forward (A) and insert metal tab of net into buckle (B) until it latches securely.

---




3. After entering and exiting vehicle several times, check to be sure that the top strap (C) of the net is taut when net is latched securely. Tighten or loosen net at adjusting buckles (D) as needed.

Exiting vehicle:

1. Park vehicle safely.

2. Push button to release metal tab from buckle (B).

3. Move net rearward out of entry and exit area, and exit vehicle.
