Adjusting Bucket Seat

Avoid injury! Never adjust the seat while machine is moving. To prevent loss of machine control, stop machine before adjusting seat.

  1. Stop machine and move the transmission shift lever to the neutral position.

  2. Lock park brake.

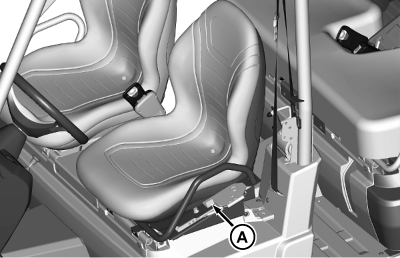

  3. MXT016188
    MXT016188-UN-30OCT15

    Picture Note: Nets hidden for clearer view.

    Pull out on lever (A) and slide seat forward or rearward until seat locks in place.


  4. Release lever.

SB31882,00001A8-19-20180504
