Checking Brake Fluid Level

Road homologated XUV560 machines have a sensor inside the brake fluid reservoir. When the brake fluid level is low, a warning indicator on the instrument cluster becomes illuminated. (See Using Instrument Cluster Controller in Operating section.)

Avoid damage! Avoid contamination of the brake fluid by thoroughly cleaning the area around the filler cap before removing. Do not open the brake fluid reservoir cap unless necessary.

Use extreme care when filling the reservoir. Fluid spilled on painted surfaces can cause damage.

Use only brake fluid from a sealed container.

1. Park the machine safely. (See Parking Safely in Safety section.)

2. Open the hood.

3. To avoid leakage, do not overfill reservoir.


   MXT012761-UN-13NOV14

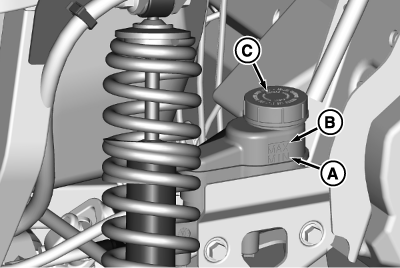

   Visually check brake fluid reservoir. Brake fluid level must be between “MIN” (A) and “MAX” (B) marks. If fluid is low:
   • Carefully clean area around the reservoir cap (C).
   • Remove reservoir cap and add fluid to the “MAX” mark.



---




4. Install reservoir cap.

5. Close hood.
