Adjusting Mower Deck Wheels

1. The mower deck can be damaged if mower wheels are adjusted wrong:

   • Bottom of wheels should be approximately 3 to 13 mm (1/8 to 1/2 in.) from the ground.
   • If mowing at 75 mm (3 in.) height of cut or higher set the anti-scalp wheels in their lowest position



   Park machine safely. (See Parking Safely in the SAFETY section.)

2. Inflate tires to the correct pressure.

3. Lower mower deck to the desired mowing position.

4. Bottom of wheels should be approximately 3-13 mm (1/8-1/2 in.) from the ground.

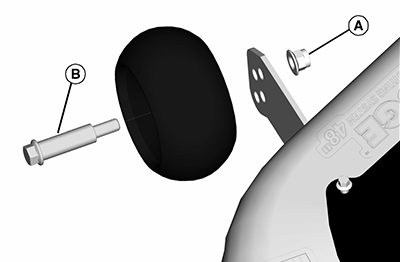

   GXAL41988-UN-04MAR13

   Check each mower wheel position. Remove nut (A) and bolt (B), and move mower wheel to proper hole.

---




5.

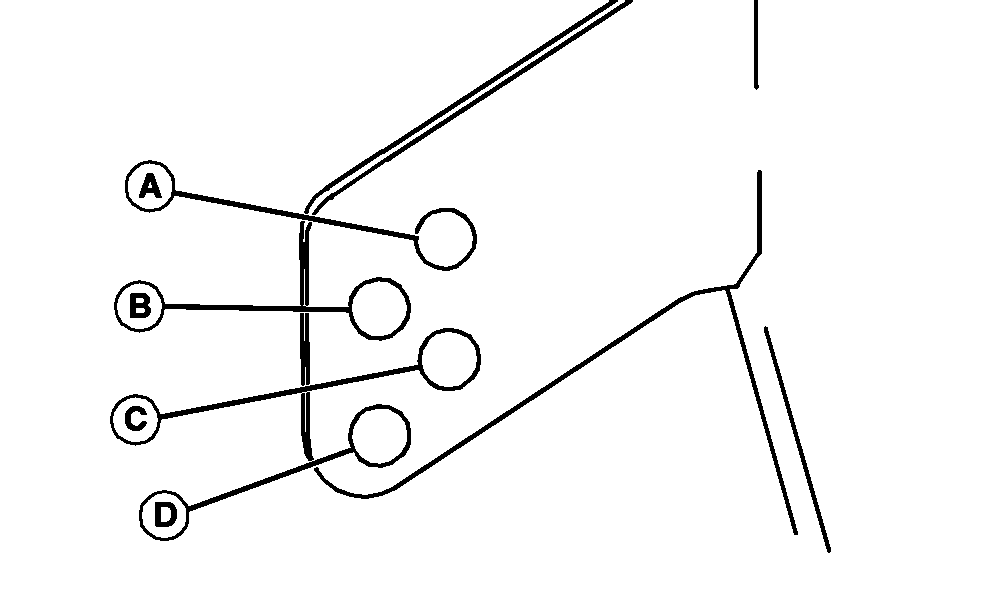

   GXAL41989-UN-04MAR13

   A - 38 mm (1.5-In.) or less

   B - 51 mm (2-In.)

   C - 64 mm (2.5-In.)

   D - 76 mm (3-In.) and above

   Install bolts and nuts to lock wheels in position. Tighten nuts to specifications.

   Mower Deck Wheel Nut	Torque	25 lb-ft (34 N·m)

---
