Using Key Switch and Headlights

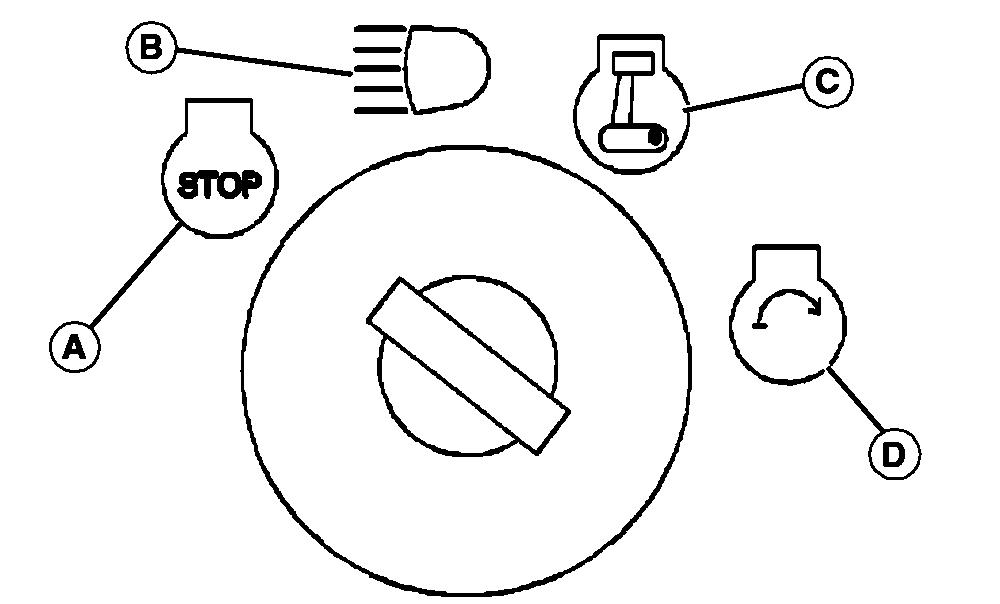

GXAL41992-UN-04MAR13

A - STOP Position

B - Headlights On Position

C - Run Position

D - Start Position

Engine Off

Headlights will drain the battery rapidly if key switch is left in headlights on position (B) with the engine off.

• To turn headlights on, turn key switch to headlights on position (B).
• To turn headlights off, turn key switch to STOP position (A).

Engine On

• To turn headlights on, start engine, then turn key switch from run position (C) to headlights on position (B).
• To turn headlights off, turn key switch from headlights on position (B) to run position (C).
