Lubricating Pivot Points

107 cm (42 in.) Mower Deck:

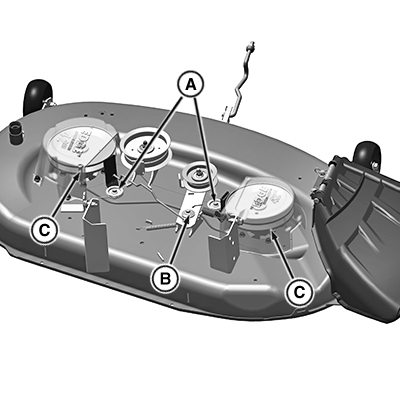

PY43281-UN-29MAY17

A - Blade Brake Pivots

B - Deck Idler Pivot

C - Spindle Grease Fitting (2)

• Lubricate the blade brake pivots (A) and deck idler pivot (B) with a general all-purpose spray lubricant.
• Lubricate the two spindle grease fittings (C) with one or two shots of general all-purpose grease.

122 cm (48 in.) and 137 cm (54 in.) Mower Decks:

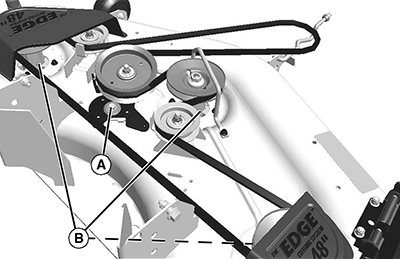

GXAL42006-UN-04MAR13

122 cm (48 in.) mower deck used for illustration

A - Deck Idler Pivot

B - Spindle Grease Fitting (3)

• Lubricate the deck idler pivot (A) with a general all-purpose spray lubricant.
• Lubricate the three spindle grease fittings (B) with one or two shots of general all-purpose grease.
