Removing and Installing Closeout Panels (If Equipped)

Each closeout panel has two mounting tabs on the flat rear flange, and a tab hole at the lower front corner. The mounting tabs slide into attachment features at each side of the machine cowl to secure the rear of each panel, a screw and washer secures each panel at the front.


Removing panels:

  1. Tilt hood forward.

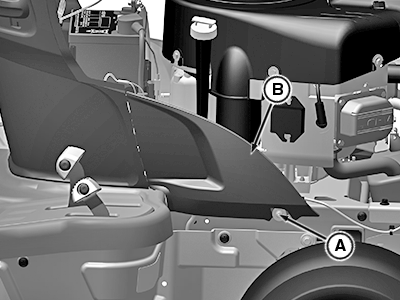

  2. PY43344
    PY43344-UN-26MAY17

    Right side shown.

    Remove retaining screw (A) and flat washer securing lower front corner of closeout panel (B) to frame.


  3. Rotate closeout panel away from tractor. Mounting tabs will slide out of attachment features in machine cowl.


Installing panels:

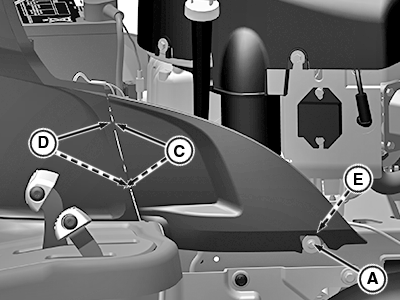

  1. PY43345
    PY43345-UN-26MAY17

    Right side shown.

    Align mounting tabs (C) at rear of closeout panels with top of attachment features (D) at front of machine cowl.


  2. Install washer and retaining screw (A) in hole (E) on closeout panel.

  3. Lower hood.

RM87422,00006F5-19-20170529
