Removing and Installing Machine Shields

Remove and Install Machine Shields - X106 & X126

1. Park machine safely. (See Parking Safely in SAFETY section.)

2. Any time shields are removed, clean all debris from the top surface of the mower deck and under all sheaves before shield installation.

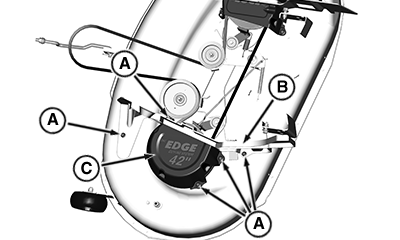

   PY24075-UN-29MAY15

   Left Side Shield

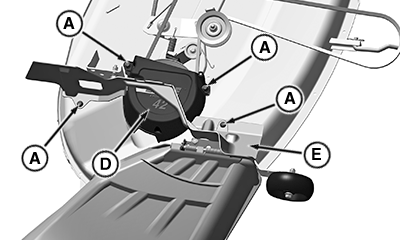

   PY44536-UN-26JUL17

   Right Side Shield

   On left side of machine, remove screws (A), then remove shield (B) and belt shield (C).

---




3. On right side of machine, remove screws (A), then remove shield (E) and belt shield (D).

4. To install, place shields onto machine tabs and secure with screws.

Remove and Install Machine Shields - X166

1. Park machine safely. (See Parking Safely in SAFETY section.)

2. Any time shields are removed, clean all debris from the top surface of the mower deck and under all sheaves before shield installation.

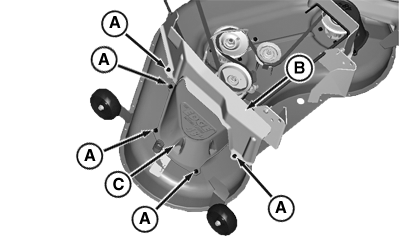

   PY20777-UN-04AUG14

   Left Side Shield

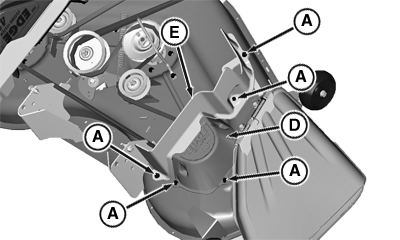

   PY20778-UN-04AUG14

   Right Side Shield

   On left side of machine, remove screws (A), then remove shield (B) and belt shield (C).

---




3. On right side of machine, remove screws (A), then remove shield (E) and belt shield (D).

4. To install, place shields onto machine tabs and secure with screws.

Remove and Install Engine Drive Sheave Shield

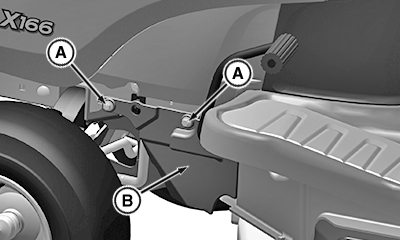

PY43340-UN-25MAY17

Left Side Shield

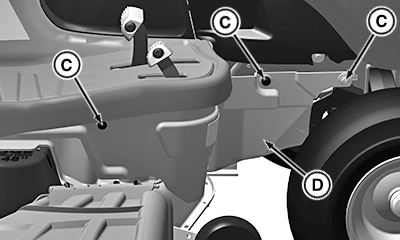

PY43341-UN-25MAY17

Right Side Shield

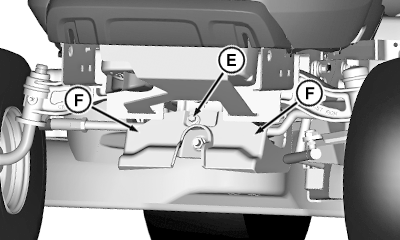

PY24069-UN-27MAY15

Front Shield

1. Remove the screws (A) and detach left side shield (B).

2. Remove the screws (C) and detach right side shield (D).

3. Remove the screw (E) and detach frontside shield (F). Take care, do not damage the parts.

4. Check the part for any damage and if necessary replace the required parts.

5. For install, assemble the frontside shield (F) to exact position as shown with screw (E).

6. Install right side shield (D) and tighten the screw (C).

7. Install left side shield (B) and tighten the screw (A). Tighten the screws as per specification.
