Adjusting Seat

  1. Sit in seat.

  2. PY20093
    PY20093-UN-11JUL14

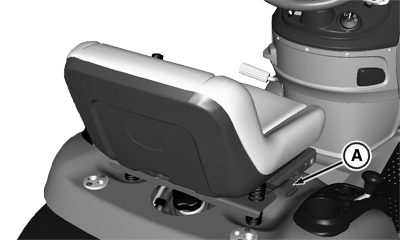

    Lift up on seat adjustment lever (A) on right side of seat.


  3. Lean forward and slide seat forward or rearward to desired position. Do not lean back on top of seat to push rearward.

  4. Release seat adjustment lever to lock in position.

RM87422,00007F7-19-20170828
