Park machine safely.
(See Parking Safely in SAFETY section.)
-
Put attachment lift lever
in the transport position.
-
Slide mower under machine.
-
Put wood blocks under
each side of mower deck.
-
Put attachment lift lever
in lowest position.
-

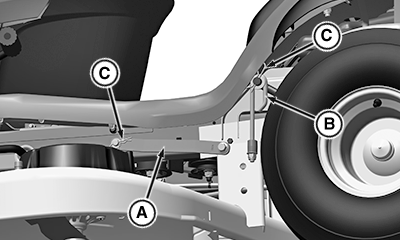

PY35590-UN-30MAY17
Fasten rear draft arm (A) and adjustable lift link (B), on
each side, with washers and spring locking pins (C).
-
To prevent clutch damage, make sure that front draft
rod is installed correctly. Secure rod with washer and spring locking
pin on the left side of mower deck bracket.

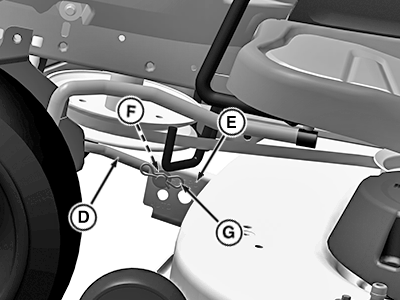

PY43342-UN-30MAY17
107 cm (42 in.) Mower Deck Shown
Install front draft rod (D) into mower deck bracket (E):
- For X106 model only, use the hole marked AUTO (shown).
- For all other models, use the hole marked HYDRO (F).
-
Secure front draft rod
with washer and spring locking pin (G).
-
Component is spring-assisted and under tension. Injury
occurs if spring-assisted component is released suddenly.

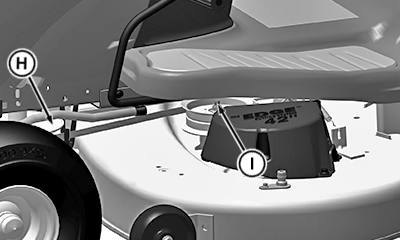

PY43343-UN-26MAY17
107 cm (42 in.) Mower Deck Used For Photo Purposes
Put mower drive belt on engine drive sheave (H).
- On 122 cm (48 in.) mower decks only: Put a 15 mm closed
wrench or a socket on the idler sheave nut (I) and rotate clockwise,
moving idler sheave and tensioning arm toward front of tractor. Hold
while installing belts on drive sheave.
-

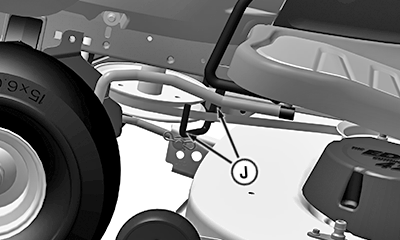

PY43336-UN-25MAY17
On 107 cm (42 in.) mower decks only: Make sure that belt
is routed through both belt guides (J).
-
Remove wood blocks from
both sides of mower deck.
-
On machines with 107
cm (42 in.) mower deck: Attach mower engagement drive cable.
-

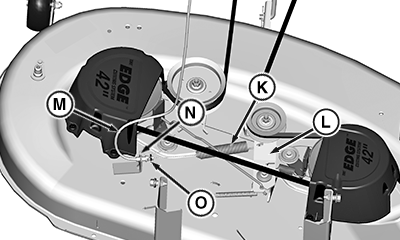

PY24081-UN-08JUN15
107 cm (42 in.) Mower Deck Only
Route cable under mower belt and brake rod and attach cable
spring (K) to idler sheave bracket (L).
-
Pull out on cable (M),
align black end of cable with slot in bracket (N) and release cable
into slot. Secure with spring locking pin (O).
-
Level mower deck.
-
Reinstall the machine
shields. (See Removing and Installing Machine Shields in SERVICE MOWER
section.)
