Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See SAFETY LABELS WITHOUT TEXT section):

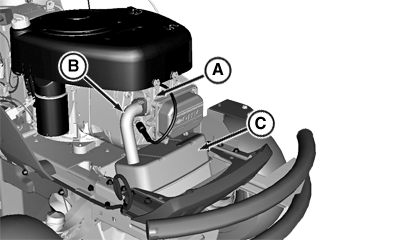

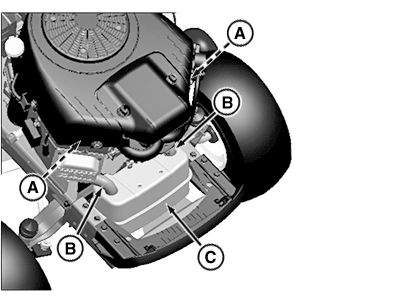

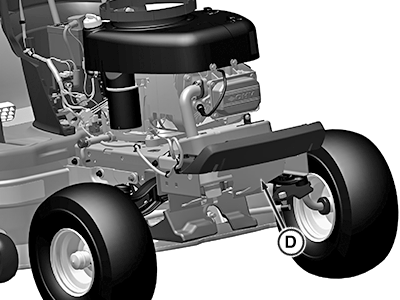

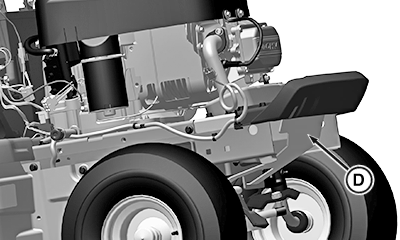

Exhaust manifold (A), muffler pipe (B), muffler (C) and muffler shield (D).

  • Single Cylinder

    PY20785
    PY20785-UN-13AUG14

    PY43320
    PY43320-UN-25MAY17

  • Twin Cylinder

    PY19177
    PY19177-UN-06JUL15

    PY43322
    PY43322-UN-25MAY17

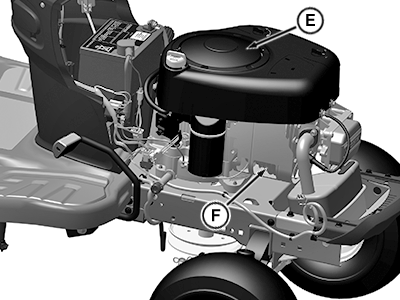

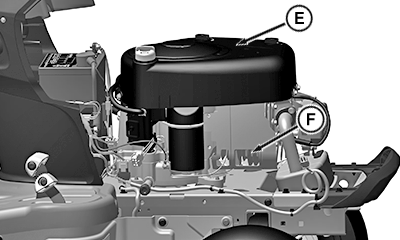

Engine intake screens (E), cooling fins (F), and oil cooler (if equipped).

  • Single Cylinder

    PY43323
    PY43323-UN-25MAY17

  • Twin Cylinder

    PY35576
    PY35576-UN-29MAY17

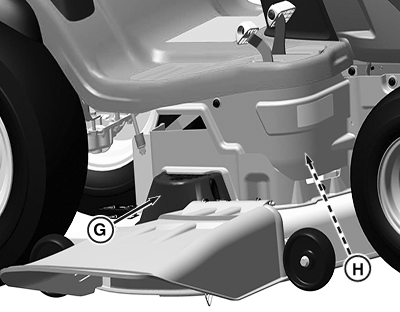

Top of mower deck, under shields (G), including spindle (H) and belt areas.

APY08066
APY08066-UN-30MAY18

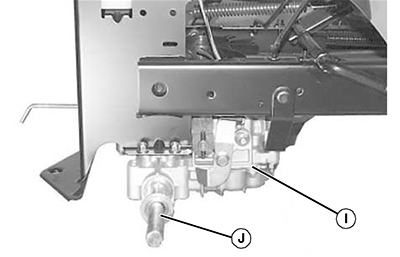

On or near transmission (I) and driveline (J).

GXAL41972
GXAL41972-UN-04MAR13

Shown with Wheel Removed

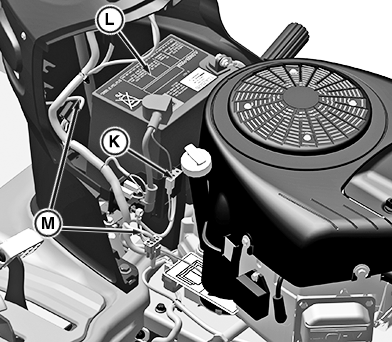

Under left side panel near fuse block (K), and all wiring, including the battery (L) and related wiring harnesses (M).

PY38562
PY38562-UN-01JUN17
