Using the Reverse Implement Option (RIO)

CAUTION: Avoid Injury! Children or bystanders may be injured by runover and rotating blades. Before traveling forward or rearward:

• Carefully check the area around the machine.
• Disengage the mower before backing up.

NOTE: Avoid operating the mower while backing up. Only use the RIO when operating another attachment or repositioning the machine with the mower engaged.

1. Stop forward travel. Allow attachment to run.

2. Look down and behind the machine to be sure that there are no bystanders.

3.
   MXT020501-UN-17MAY17

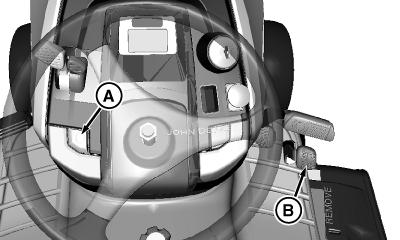

   Push and hold in the reverse implement switch (A) while depressing reverse pedal (B) slightly.

---




4. NOTE: If the attachment stops while positioning the machine, return mower engagement switch to off position. Repeat this procedure from the beginning.

   Release the reverse implement switch and reposition the machine as the machine begins to move rearward.

5. Resume forward travel. The attachment continues operating.

6. Reposition the machine by repeating the procedure.
